NETGEAR SOHO Ethernet Unmanaged Switches

SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.



Extended Features



- Choice of Fast Ethernet and Gigabit Ethernet connectivity

- Energy-efficient technology for power savings

- Auto-MDI/MDIX eliminates the need for crossover cables

- Non-blocking switching architecture for maximum throughput at wire speed

- Auto-negotiation for automatic connection at the highest common speed between switch and an end device

- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices

- Fanless design for silent opeartion

- Desktop, wall-mountable or rack-mountable (GS324, GS348)
10G supportNo
AC input frequency50/60 Hz
AC input voltage110 - 240 V
Auto MDI/MDI-XY
Auto-negotiationY
Auto-sensingY
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cables includedAC
CertificationCE, FCC 15 A, IC A, RCM, VCCI, KC\nCB, CE LVD, UL
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth310 mm
Forwarding rate1.448 Mpps
Full duplexY
Heat dissipation1402.2 BTU/h
Height43 mm
Housing materialMetal
Jumbo frames supportY
Latency (1 Gbps)4 μs
LED indicatorsActivity,Link,PoE,Power,Speed
MAC address table8000 entries
Mean time between failures (MTBF)570972 h
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u
Number of fans2 fan(s)
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Packet buffer memory1.5 MB
Power consumption (max)410 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Quality of Service (QoS) supportY
Rack mount kitY
Rack mountingYes
Storage relative humidity (H-H)10 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity96 Gbit/s
Total Power over Ethernet (PoE) budget380 W
User guideY
Weight4560 g
Width440 mm
Jumbo frames12288
Packet forwarding rate (1 Gbps)1448000 pps
Power over Ethernet (PoE) power per port30 W
Cable length detectionY
Queue scheduling algorithmsWeighted Round Robin (WRR)
Product colourBlack

gs348pp-100eus.pdf

Netgear GS348PP Data Sheet

Download (656.73k)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

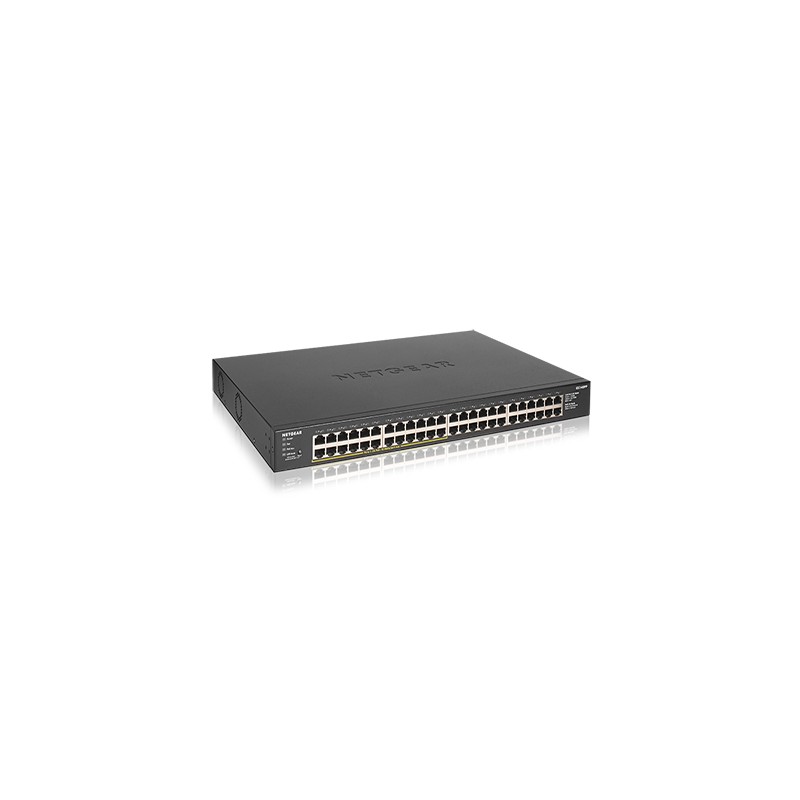

Netgear GS348PP

GS348PP, 48x 1G RJ-45, 96 Gbps, PoE, 110-240V, 50/60Hz, 440x310x43 mm

GS348PP-100EUS

In Stock

£653.11
£544.26 Ex VAT.
