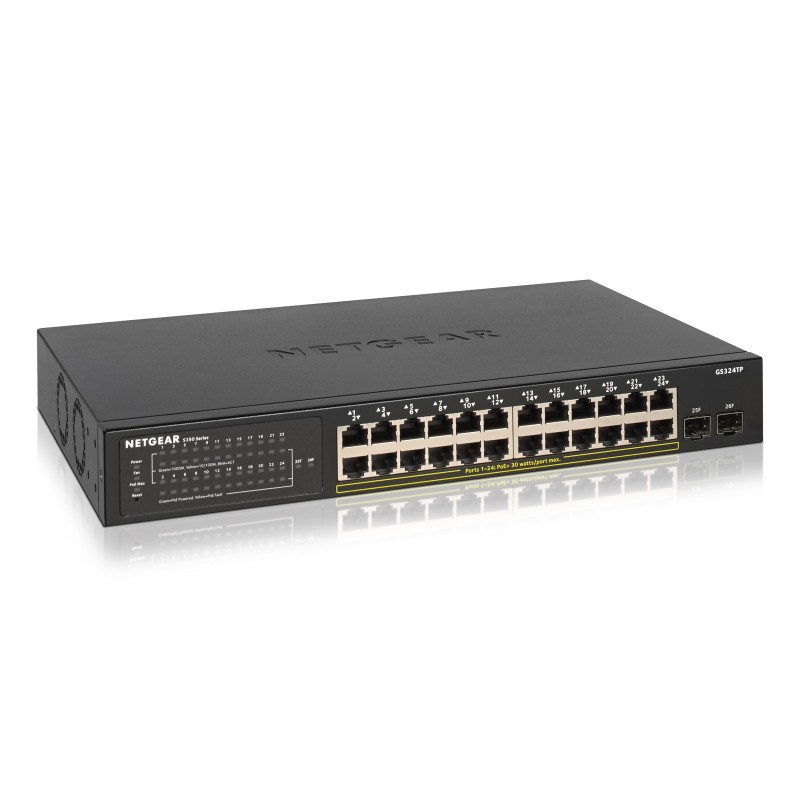

Netgear GS324TP
  • Netgear GS324TP
  • Netgear GS324TP
  • Netgear GS324TP
  • Netgear GS324TP
Connectivity, Security and Affordability for Your Smart Business

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.



Designed for Converged Networks

NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business.



Smart Managed switching features for security and performance

- Advanced VLAN support for better network segmentation

- L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication

- QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based

- Auto “denial-of-service” (DoS) prevention

- Rate limiting and priority queuing for better bandwidth allocation

- Port mirroring for network monitoring



Network Development Made Easy

- Auto Voice VLAN for easy development of VoIP

- Auto Video for simple deployment of IP Surveillance

- ACL Wizard for a guided tour to set up your network access control

- Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrades

- PoE Timer for scheduling the on/off time of your PoE powered devices

- Easy to manage via web browser-based management GUI or Smart Control Center for multi-switch deployment
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Buffer size512 KB
Cables includedAC
Depth206 mm
DoS attack preventionY
Firmware upgradeableY
Flow control supportY
Full duplexY
Height43 mm
IGMP snoopingY
Input current5 A
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address table16000 entries
Mounting brackets includedY
Networking standardsIEEE 802.3at,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3az,IEEE 802.3x
Noise level32.8 dB
Number of fans2 fan(s)
Number of VLANs256
Operating temperature (T-T)0 - 45 °C
Package depth452 mm
Package height88 mm
Package typebox
Package weight3970 g
Package width268 mm
Port mirroringY
Power consumption (max)229.9 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Quality of Service (QoS) supportY
Rack mountingYes
Rate limitingY
Spanning tree protocolY
Store-and-forwardY
Switch typeManaged
Switching capacity52 Gbit/s
Total Power over Ethernet (PoE) budget190 W
VLAN supportY
Weight2690 g
Width330 mm
ARP inspectionY
Installed SFP modules quantity2
Loop protectionY
ARP attack preventionY
Power connectorAC-in jack
Product colourBlack
Virtual Cable Test (VCT)Y
Virtual LAN featuresPrivate VLAN,Voice VLAN,Port-based VLAN
DHCP featuresDHCP client
Master (outer) case width293 mm
Master (outer) case length471 mm
Master (outer) case height498 mm
Master (outer) case weight20880 g
Quantity per master (outer) case5 pc(s)

gs324tp-100eus.pdf

Netgear GS324TP Data Sheet

Download (708.39k)
