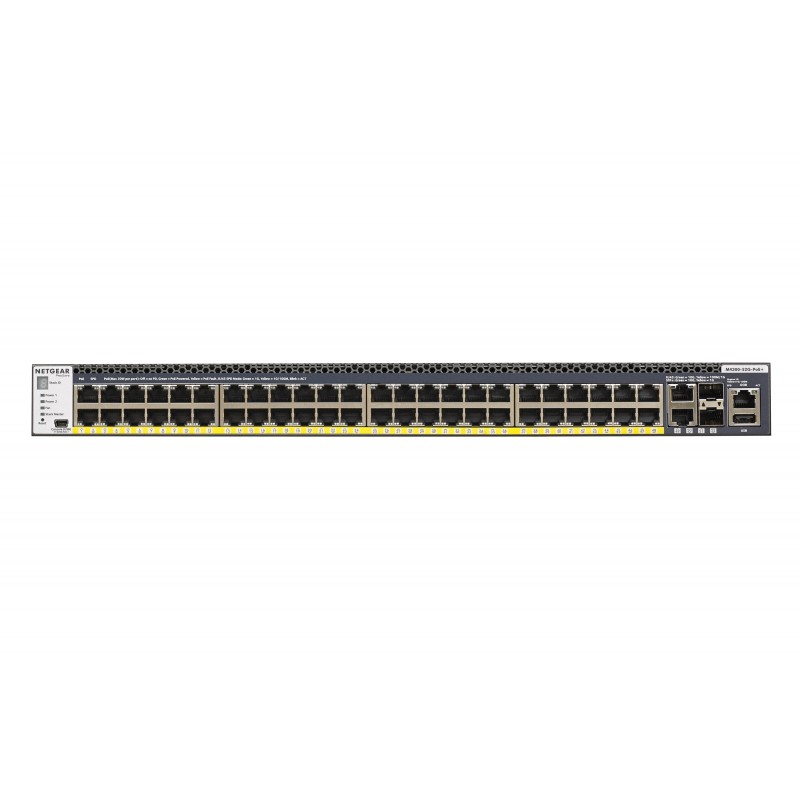

Netgear M4300-52G-PoE+ 1000W PSU
  • Netgear M4300-52G-PoE+ 1000W PSU
  • Netgear M4300-52G-PoE+ 1000W PSU
  • Netgear M4300-52G-PoE+ 1000W PSU
  • Netgear M4300-52G-PoE+ 1000W PSU
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.



Best-in-class stacking



- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)

- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption



Higher flexibility



- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization

- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds



Lower complexity



- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license

- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation



Investment protection



- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks

- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection



Secure services



- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs

- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies



Industry standard management



- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN

- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support



Industry leading warranty



- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty

- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
10G supportYes
AC input voltage120-230 V
Access Control List (ACL)Yes
Auto MDI/MDI-XYes
Auto-negotiationYes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity50
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorYes
Cable types supportedCat5,Cat5e,Cat6,Cat7,Fiber
Cables includedAC,LAN (RJ-45),Mini-USB
Case designFreestanding
Colour of productBlack
Console portRJ-45/Mini-USB
Depth388 mm
DHCP clientYes
DHCP serverYes
Electromagnetic compatibilityCE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024,
Fiber ethernet cabling technology10GBASE-LR,10GBASE-LRM,10GBASE-SR
Fiber optic connectorSFP+
Flash memory256 MB
Flow control supportYes
Form factor1U
Heat dissipation303163 BTU/h
Height44 mm
IGMP snoopingYes
Internal memory1024 MB
IP routingYes
Jumbo frames supportYes
LED indicatorsActivity,Power,Speed
Link aggregationYes
MAC address table16000 entries
Mean time between failures (MTBF)673207 h
Multicast supportYes
Networking standardsIEEE 802.11ad,IEEE 802.11az,IEEE 802.3ad,IEEE 802.3az
Noise level39.8 dB
Non-operating altitude0 - 3000 m
Number of power supply units1
Number of VLANs4000
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory16 MB
Port mirroringYes
Power consumption (max)888 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity48
Power supply includedYes
Processor frequency800 MHz
Quality of Service (QoS) supportYes
Rack mount kitYes
Rack mountingYes
Rate limitingYes
Redundant power supply (RPS) supportYes
Rubber feetYes
SafetyCSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Security algorithmsHTTPS,SNMP,SSH
Spanning tree protocolYes
SSH/SSL supportYes
StackableYes
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Store-and-forwardYes
Switch layerL2/L3/L4
Switch typeManaged
Switching capacity176 Gbit/s
Throughput357 Mpps
Total Power over Ethernet (PoE) budget591 W
USB 2.0 ports quantity1
User guideYes
VLAN supportYes
Web-based managementYes
Weight6670 g
Width440 mm
ARP inspectionYes
Jumbo frames9000
Private VLANYes
SFP+ module slots quantity2
BPDU filtering/protectionYes
Power over Ethernet (PoE) power per port30 W
Resource CDYes

GSM4352PB-100NES.pdf

Netgear M4300-52G-PoE+ 1000W PSU Data Sheet

Download (6.26M)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

Netgear M4300-52G-PoE+ 1000W PSU

52 GB POE+, L3, PoE+, 10/100/1000/10000, 176 Gbps

GSM4352PB-100NES

Out of Stock

£3,693.74
£3,078.12 Ex VAT.
