Netgear XS716E
  • Netgear XS716E
  • Netgear XS716E
  • Netgear XS716E
  • Netgear XS716E
  • Netgear XS716E
Leading the Industry with the 2nd Generation of 10-Gigabit Web Managed (Plus) Switches, Purposely Designed for SMB with Cost-Effective 10GBASE-T Connectivity and Basic L2 Management Features

As a leading provider of network equipment for SMBs, NETGEAR® continues to lead the networking industry with its 2nd Generation of ProSAFE® 10-Gigabit Web Managed (Plus) Switches. The XS708Ev2 and XS716E are the market’s most cost efficient 10-Gigabit switches. Built for SMBs, workgroups, and even home offices, the XS708Ev2 provides 8 (eight) 10-Gigabit Copper ports and 1 Shared (Combo) Copper/SFP+ fiber port, while the XS716E provides 16 (sixteen) 10-Gigabit Copper ports and 1 Shared (Combo) Copper/SFP+ fiber port, all at an affordable price.



These 10-Gigabit Web Managed switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems, and to meet current and future needs on virtualization, converged networking, and mobility, removing the bottlenecks created by the proliferation of Gigabit-to-the-desktop and the explosion of wireless devices on the network.



As part of the ProSAFE Web Managed (Plus) switch product family, the XS708Ev2 and XS716E 10-Gigabit Ethernet switches come with configurable L2 network features such as VLAN, QoS, IGMP snooping, port trunking/link aggregation and rate limiting. These features help to further optimize business network performance, delivering great value and empowering the SMB network. Both switches feature an easy-touse web browser-based management GUI in addition to plug-and-play connectivity.



The XS708Ev2 and XS716E are ideal switches for SMBs in need of simple and affordable 10-Gigabit Ethernet connectivity into their 10G-capable servers and storage devices. Either can be used at the “center of a small business or home office network” or as an aggregation/access switch in a larger organization, connecting to a 10-Gigabit NETGEAR ProSAFE Fully Managed Switch on one end and extending the 10G connections to the edge. They are also ideal for smaller workgroups that need high bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation. Customers can use Cat6 or Cat7 copper cables with standard RJ45 Ethernet jacks that are already widely used in their current network. Network speeds can improve up to 10x going from traditional Gigabit to 10-Gigabit with minimal network changes and upgrades.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Broadcast storm controlYes
CertificationCE, 47 CFR FCC, SubpartB, ANSI C63.4: 2014, EN 55022:2010 + AC:2011, EN 55024:2010, AS/NZS CISPR 22:2009 + A1:2010, V-3/2015.04, V-4/2012.04, ICES-003:2012 Issue 5, EAC, KC, CCC, CNS 13438, CNS 13438
Colour of productBlack
Console portRJ-45
Country of originChina
DC-in jackYes
Depth204 mm
DHCP clientYes
Flow control supportYes
Form factor1U
Full duplexYes
Heat dissipation21440 BTU/h
Height43 mm
IGMP snoopingYes
Input current2.5 A
Jumbo frames supportYes
Latency (1 Gbps)2.68 µs
Latency (10 Gbps)3.43 µs
Latency (10-100 Mbps)7.14 µs
LED indicatorsYes
Link aggregationYes
MAC address table16000 entries
Mean time between failures (MTBF)348257 h
Multicast supportYes
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3aq,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level33.9 dB
Number of multicast groups filtered128
Number of VLANs128
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory2 MB
Port mirroringYes
Power consumption (max)62.7 W
Power consumption (typical)20.9 W
Power over Ethernet (PoE)No
Quality of Service (QoS) supportYes
Rack mountingYes
Rate limitingYes
Reset buttonYes
SafetyUL/cUL UL 60950-1/CAN/CSA C22.2 No. 60960-1-07, EN 60950-1: 2006, A11:2009, A1:2010, A12:2011, A2:2013, IEC 60950-1:2005, A1:2009, A2:2013, AN/NZS 60950.1:2011/Amdt 1: 2012
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity320 Gbit/s
Throughput238.1 Mpps
Ventilation fan(s)2
VLAN supportYes
Web-based managementYes
Weight3200 g
Width440 mm
Jumbo frames9000
SFP+ module slots quantity1
Port-based VLANYes

XS716E-100NES.pdf

Netgear XS716E Data Sheet

Download (118.06k)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

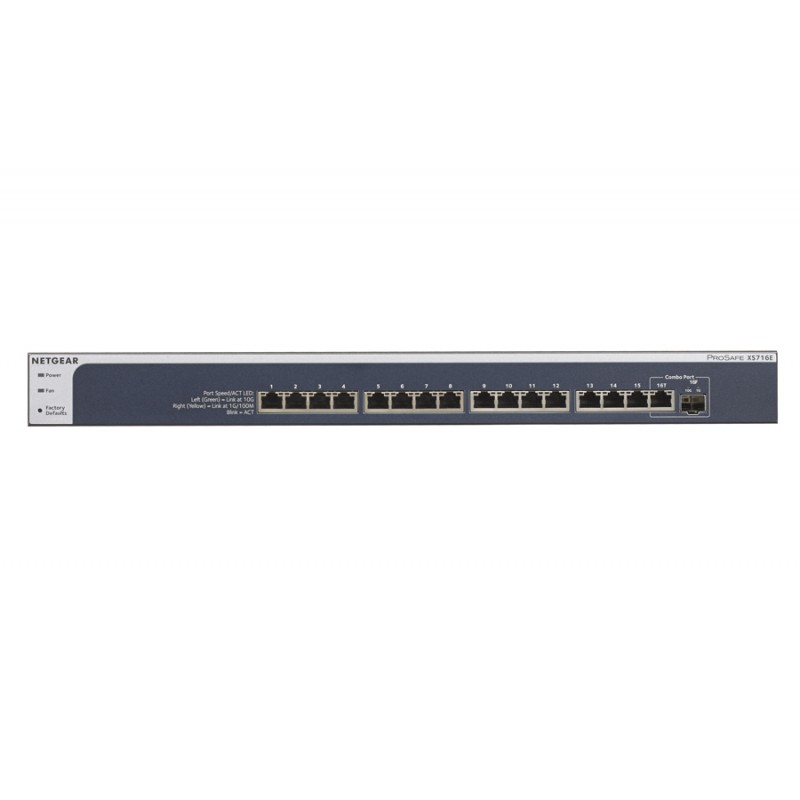

Netgear XS716E

10-Gigabit Ethernet Web Managed (Plus) Switches, 16x Rj-45, 1x SFP+, 320 Gbps, 62.7W, 3.20kg, North America, Latin America and Europe

XS716E-100NES

Out of Stock

£1,099.74
£916.45 Ex VAT.
