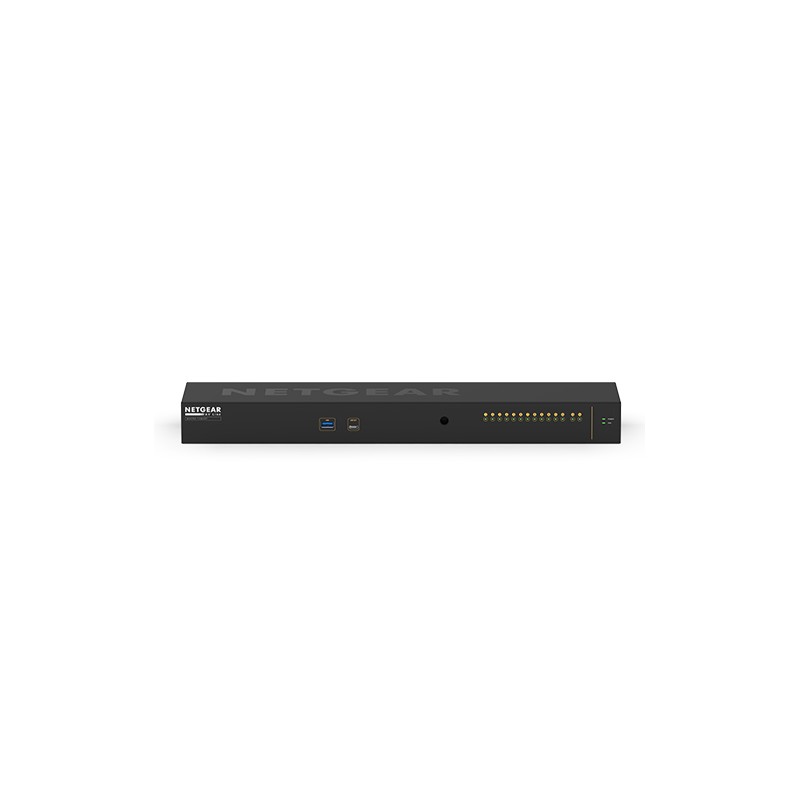

Netgear M4250-12M2XF
  • Netgear M4250-12M2XF
  • Netgear M4250-12M2XF
  • Netgear M4250-12M2XF
  • Netgear M4250-12M2XF
  • Netgear M4250-12M2XF
  • Netgear M4250-12M2XF
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.



M4250 Support for Audio Video Bridging (AVB)

One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
10G supportNo
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity12
Broadcast storm controlY
Built-in processorY
Depth100 mm
Form factor1U
Full duplexY
Heat dissipation129.39 BTU/h
Height43.2 mm
IGMP snoopingY
Internal memory2048 MB
Jumbo frames supportY
Latency (1 Gbps)1.186 µs
LED indicatorsPoE,Power,Status
Link aggregationY
MAC address table16000 entries
Mean time between failures (MTBF)720892 h
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x
Noise level46.4 dB
Non-operating altitude0 - 3000 m
Number of queues8
Number of VLANs4093
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory16 MB
Power consumption (typical)37.9 W
Power over Ethernet (PoE)No
Processor frequency1250 MHz
Processor modelARM Cortex-A9
Quality of Service (QoS) supportY
Rack mountingYes
Rate limitingY
Spanning tree protocolY
SSH/SSL supportY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Store-and-forwardY
Switch layerL2/L3
Switch typeManaged
Switching capacity100 Gbit/s
Throughput74.4 Mpps
VLAN supportY
Weight1750 g
Width440 mm
Jumbo frames12000
SFP+ module slots quantity2
BPDU filtering/protectionY
Loop protectionY
AuthenticationMAC-based authentication
Authentication typeRADIUS
Product colourBlack
IPv4 multicast entries2000
IPv6 multicast entries2000
Virtual LAN featuresMAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
DHCP featuresDHCP Option 82,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping

msm4214x-100eus.pdf

Netgear M4250-12M2XF Data Sheet

Download (4.03M)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

Netgear M4250-12M2XF

100 Gbps, 12x 2.5G RJ-45, 2x SFP+, 440x100x43.2 mm

MSM4214X-100EUS

Out of Stock

£1,194.85
£995.71 Ex VAT.
