Instant Connectivity and Reliable Performance

The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516UP joins the series and offers 8 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 380W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.



The GS516UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.



Powerful Ultra60 PoE++

Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS516UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.



NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power.



The GS516UP includes 8 UltraPoE++ ports that can deliver up to 60W of power per port.



PoE Mode

Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS516UP solves this problem by providing power to both pre-bt and bt standard devices.



- GS516UP by default uses 802.3bt standard, only compatible for bt standard devices

- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power

- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power

- If the GS516UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Depth220 mm
Full duplexY
Heat dissipation1559.5152 BTU/h
Height43 mm
Housing materialMetal
Input current8 - 4 A
Jumbo frames supportY
Latency (1 Gbps)12 µs
LED indicatorsActivity,Link,PoE,Power,Speed
MAC address table8000 entries
Mean time between failures (MTBF)1213791 h
Networking standardsIEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3i,IEEE 802.3p,IEEE 802.3u
Number of fans3 fan(s)
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory0.192 MB
Power consumption (max)456.8 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Power supply includedY
Quality of Service (QoS) supportY
Rack mountingYes
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity32 Gbit/s
Total Power over Ethernet (PoE) budget380 W
Weight2600 g
Width390 mm
Packet forwarding rate (1 Gbps)1448000 pps
Power over Ethernet (PoE) power per port60 W
Product colourGrey
Half duplexY

gs516up-100eus.pdf

Netgear GS516UP Data Sheet

Download (661.18k)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

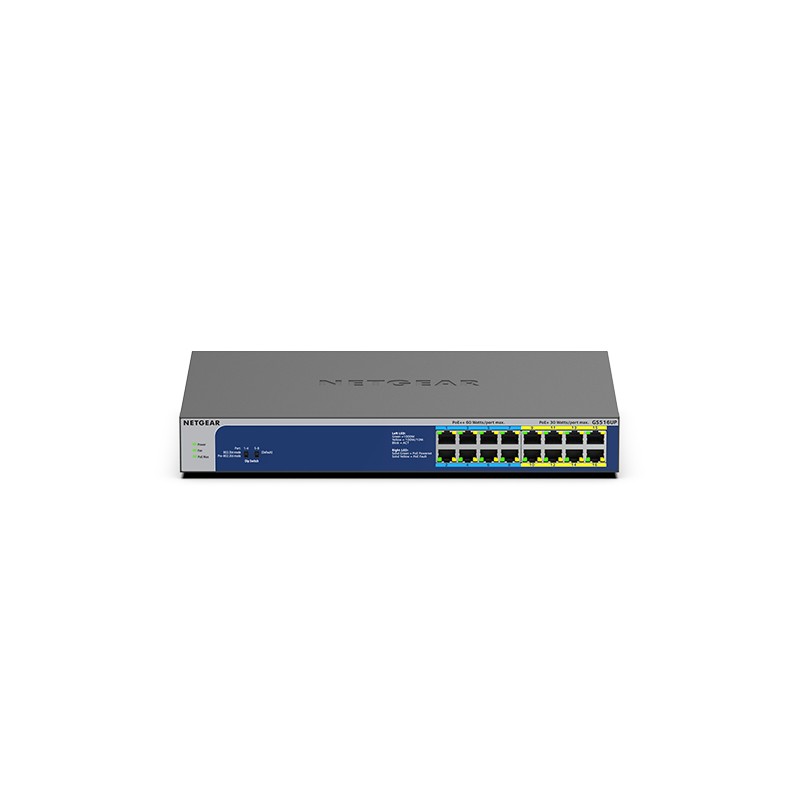

Netgear GS516UP
