10G support | Yes |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Basic switching RJ-45 Ethernet ports quantity | 12 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Broadcast storm control | Y |
Certification | 47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + |
Colour of product | Blue,Grey |
Depth | 204 mm |
DHCP client | Y |
Energy Star certified | Y |
Form factor | 1U |
Heat dissipation | 261.38 BTU/h |
Height | 43 mm |
IGMP snooping | Y |
Input current | 2 A |
Jumbo frames support | Y |
LED indicators | Y |
MAC address filtering | Y |
MAC address table | 32000 entries |
Mean time between failures (MTBF) | 1113477 h |
Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Number of VLANs | 64 |
Operating relative humidity (H-H) | 0 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Packet buffer memory | 3 MB |
Power over Ethernet (PoE) | No |
Quality of Service (QoS) support | Y |
Rack mounting | Yes |
Storage relative humidity (H-H) | 0 - 95 % |
Storage temperature (T-T) | -20 - 70 °C |
Store-and-forward | Y |
Switch layer | L2 |
Switch type | Managed |
Switching capacity | 240 Gbit/s |
Ventilation fan(s) | 2 |
VLAN support | Y |
Weight | 2510 g |
Width | 328 mm |
Jumbo frames | 9000 |
Port-based VLAN | Y |
Installed SFP+ modules quantity | 2 |
Power connector | DC-in jack |

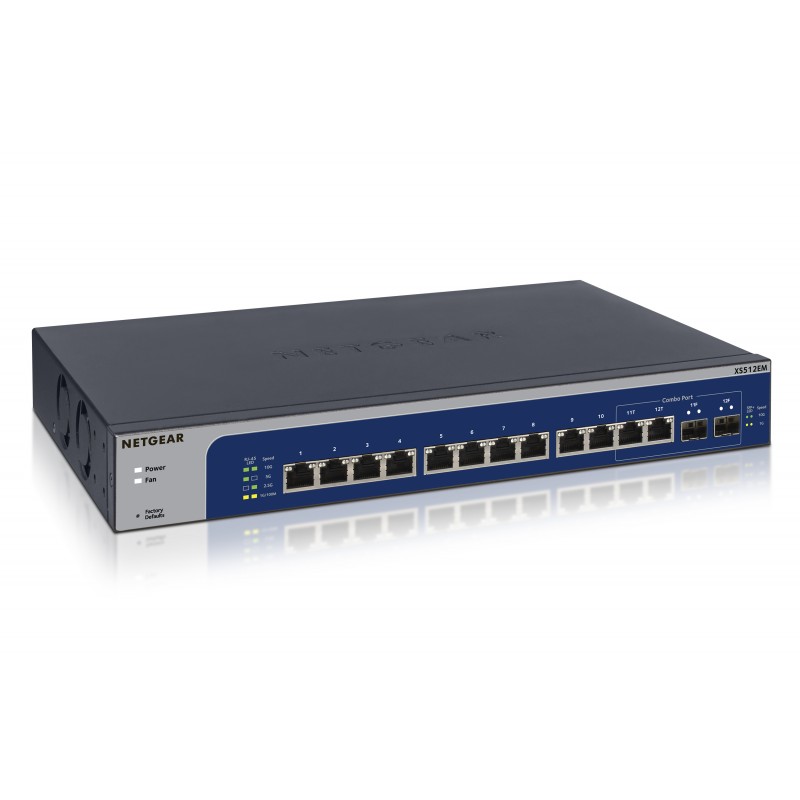

12x 10-Gig/Multi-Gig Copper, 2x 10G SFP+, Active Fan, Metal, Rackmount/Desktop
XS512EM-100EUS
In Stock
