Netgear MS510TXPP
  • Netgear MS510TXPP
  • Netgear MS510TXPP
Introducing a new Gigabit, Multi-Gigabit and 10-Gigabit Smart Managed Pro Switch Family for future-proof deployments

Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy CAT5e / CAT6 cables.



That is why NETGEAR launched its new Multi-Gigabit Smart Managed Pro Switches with 10G Copper/Fiber Uplinks. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the MS510TX and MS510TXPP give the exact speed required, with no downgrade. Also, the new NETGEAR Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle.



Access, Aggregation or Collapsed Core: You can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet new devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.
10G supportNo
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Built-in processorY
CertificationEN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2013, GB4943.1-2011; YD/T993-1998; GB/T9254-2008, 47 CFR FCC, ANSI C63.4:2014, ICES-003:2016, ANSI C63.4:2014, CNS 13438
Colour of productGrey
Console portRJ-45
DC-in jackY
Depth169 mm
DHCP clientY
DHCP serverY
Heat dissipation799.5 BTU/h
Height43 mm
IGMP snoopingY
Jumbo frames supportY
Latency (10 Gbps)2.36 µs
LED indicatorsY
MAC address table16000 entries
Mean time between failures (MTBF)376434 h
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level28.8 dB
Number of VLANs256
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory1.5 MB
Power consumption (max)234.31 W
Power consumption (typical)19.39 W
Power over Ethernet (PoE)Yes
Processor frequency800 MHz
Quality of Service (QoS) supportY
Rack mountingYes
SafetyIEC 60950-1:2005, A1:2009+A2:2013, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, 60950.1:2015, GB4943.1-2011, YD/T993-1998; GB/T9254-2008, CNS 14336-1
Spanning tree protocolY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch layerL2/L3/L4
Switch typeManaged
Switching capacity78 Gbit/s
USB 2.0 ports quantity1
Ventilation fan(s)1
VLAN supportY
Weight1420 g
Width328 mm
ARP inspectionY
Jumbo frames10000
Access Control List (ACL) rules164
MAC address table (multicast)512 entries

MS510TXPP-100EUS.pdf

Netgear MS510TXPP Data Sheet

Download (891.68k)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

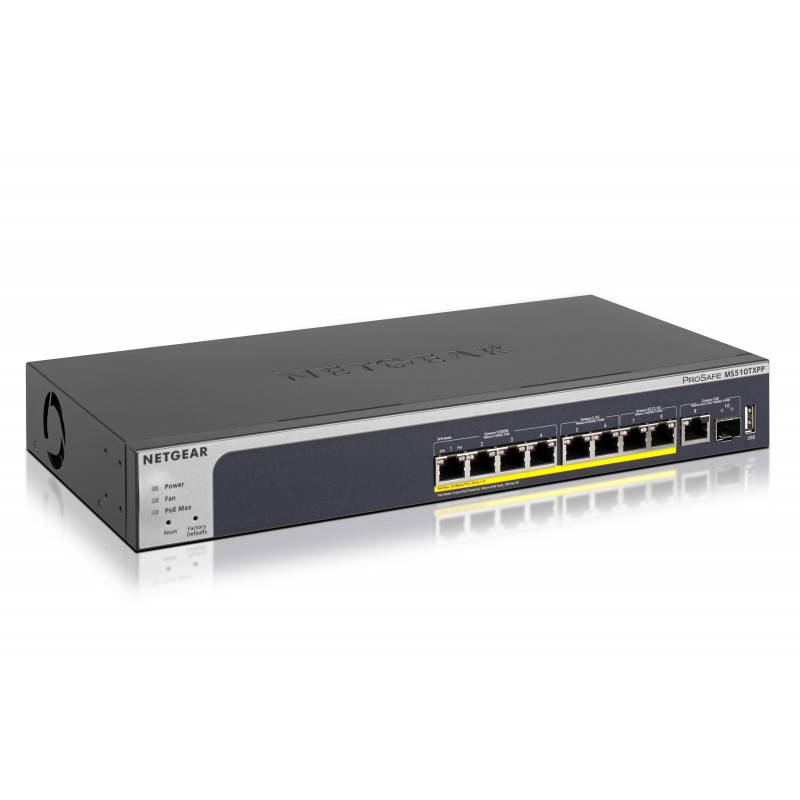

Netgear MS510TXPP

8-port PoE+ Multi-Gigabit Smart Managed Pro Switch with 10G Copper / Fiber Uplinks

MS510TXPP-100EUS

In Stock

£480.93
£400.78 Ex VAT.
