Box | N |
Bus type | DMI3 |
Component for | server/workstation |
CPU configuration (max) | 1 |
Discrete graphics adapter model | Not available |
Embedded options available | Y |
Enhanced Intel SpeedStep Technology | Y |
Execute Disable Bit | Y |
Idle States | Y |
Intel 64 | Y |
Intel Enhanced Halt State | Y |
Intel Trusted Execution Technology | Y |
Intel TSX-NI | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Maximum internal memory | 65536 MB |
Maximum number of PCI Express lanes | 16 |
On-board graphics adapter | Y |
On-board graphics adapter model | Intel UHD Graphics P630 |
PCI Express configurations | 1x16,2x8,1x8+2x4 |
PCI Express slots version | 3.0 |
Processor boost frequency | 4.7 GHz |
Processor cache | 12288 KB |
Processor code | SR3WS |
Processor codename | Coffee Lake |
Processor cores | 6 |
Processor family | Intel Xeon E |
Processor frequency | 3.7 GHz |
Processor lithography | 14 nm |
Processor model | E-2176G |
Processor operating modes | 64-bit |
Processor socket | LGA 1151 (Socket H4) |
Processor threads | 12 |
Product type | 4 |
Scalability | 1S |
Stepping | U0 |
Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
System bus rate | 8 GT/s |
Thermal Design Power (TDP) | 80 W |
Thermal Monitoring Technologies | Y |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM |
Memory clock speeds supported by processor | 2666 MHz |
Memory bandwidth supported by processor (max) | 41.6 GB/s |
Memory channels supported by processor | Dual |
ECC supported by processor | Y |
Intel Virtualization Technology (VT-x) | Y |
Intel Clear Video Technology | Y |
Processor package size | 37.5 x 37.5 mm |
On-board graphics adapter outputs supported | DVI,DisplayPort,Embedded DisplayPort (eDP),HDMI |
On-board graphics adapter base frequency | 350 Mhz |
On-board graphics adapter dynamic frequency (max) | 1200 MHz |
Maximum on-board graphics adapter memory | 64 GB |
On-board graphics adapter maximum resolution (HDMI) | 4096 x 2160 pixels |
On-board graphics adapter maximum resolution (DisplayPort) | 4096 x 2304 pixels |
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter OpenGL version | 4.5 |
Market segment | SRV |
Status | Launched |
On-board graphics adapter ID | 0x3E96 |
Video decoding | Y |
On-board graphics adapter 4K support | Y |
On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
Intel Software Guard Extensions (Intel SGX) | Y |
Product family | Intel Xeon Processors |
Number of displays supported (on-board graphics) | 3 |
Intel® vPro™ Technology | Y |
Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Secure Key | Y |
Intel® OS Guard | Y |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | Y |
Processor ARK ID | 134860 |
Intel® InTru™ 3D Technology | Y |
Discrete graphics adapter | N |
Intel® Optane™ Memory Ready | Y |
Cooler included | N |
Intel® Memory Protection Extensions (Intel® MPX) | Y |
Intel® Boot Guard | Y |

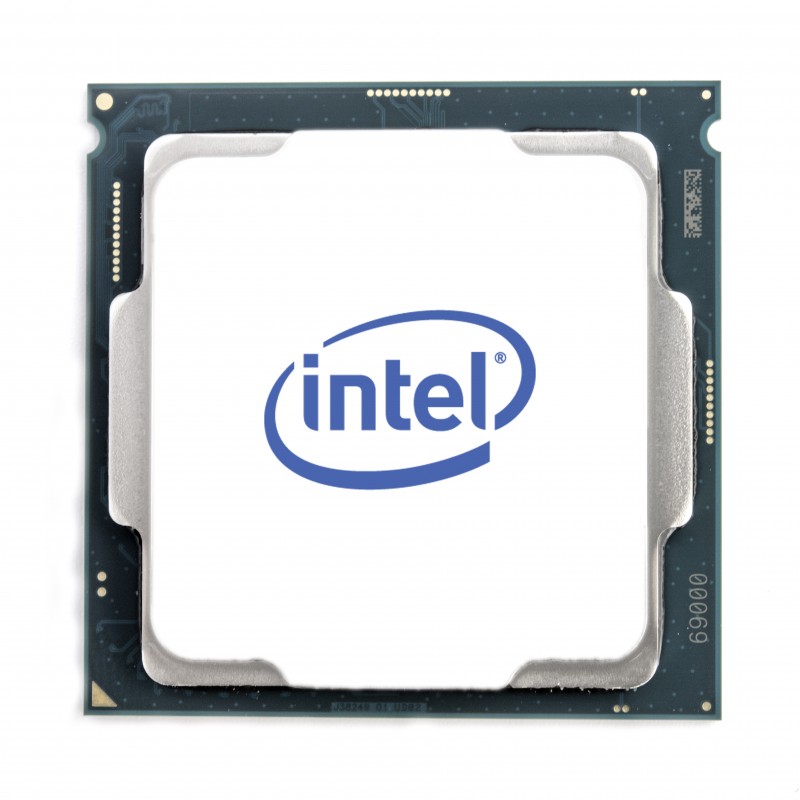

Intel® Xeon® E-2176G Processor
(12M Cache, up to 4.70 GHz)
CM8068403380018
