Enterprise Private Cloud

Enhance performance with built-in capabilities that support your data center and cloud with intelligence, efficiency, security, and flexibility.

Big Data Analytics

The Intel® Xeon® processor E5 v3 family brings exceptional compute power and data throughput for rapid processing of large or complex data sets.

Technical Computing

Meet your most complex technical requirements with the fast, scalable high-performance computing power of the Intel® Xeon® processor E5 v3 family.

Server Products

The Intel® Xeon® processor family delivers versatile performance from public and private cloud to high-performance technical computing, and much more.

Box	N
Bus type	QPI
Cache memory	20 MB
Component for	server/workstation
CPU configuration (max)	2
Embedded options available	Y
Enhanced Intel SpeedStep Technology	Y
Execute Disable Bit	Y
Idle States	Y
Intel 64	Y
Intel Demand Based Switching	Y
Intel Enhanced Halt State	Y
Intel Flex Memory Access	N
Intel Trusted Execution Technology	Y
Intel TSX-NI	N
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Maximum internal memory	786432 MB
Maximum number of PCI Express lanes	40
Number of QPI links	2
On-board graphics adapter	N
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Physical Address Extension (PAE)	46 bit
Processor boost frequency	3.4 GHz
Processor cache	20480 KB
Processor code	SR200
Processor codename	Haswell
Processor cores	8
Processor family	Intel Xeon E5 v3
Processor frequency	2.3 GHz
Processor lithography	22 nm
Processor model	E5-2618LV3
Processor operating modes	64-bit
Processor socket	LGA 2011-v3
Processor threads	16
Product type	4
Scalability	2S
Stepping	R2
Supported instruction sets	AVX 2.0
System bus rate	8 GT/s
Tcase	87.025 °C
Thermal Design Power (TDP)	75 W
Thermal Monitoring Technologies	Y
VID Voltage Range	0.65 - 1.30 V
Processor cache type	Smart Cache
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Memory channels supported by processor	Quad
ECC supported by processor	Y
Intel Virtualization Technology (VT-x)	Y
Processor package size	52.5 mm
Processor series	Intel Xeon E5-2600 v3
Born on date	Q3'14
Bus bandwidth	8
Bus type units	GT/s
Launch date	2014-09-08T00:00:00
Market segment	EMB

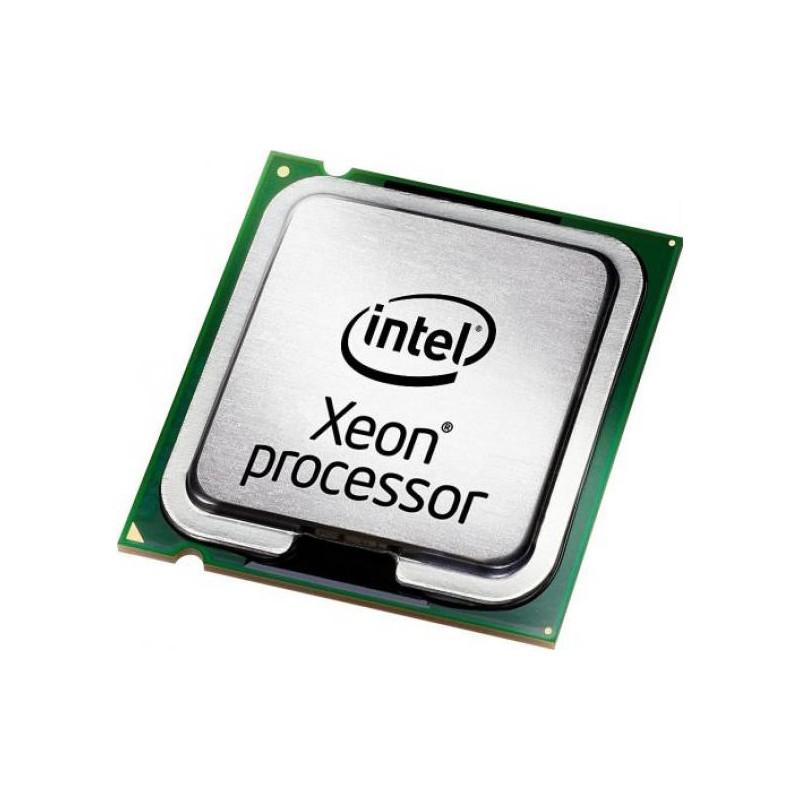

Product name	Intel Xeon E5-2618L v3 (20M Cache, 2.30 GHz)
Status	Launched
Maximum memory	768 GB
Processor brand name	Intel Xeon v2
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Processor core voltage	0.65–1.30
Conflict Free processor	N
Product family	Intel Xeon Processor E5 v3 Family
Intel® vPro™ Technology	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel® Smart Cache	Y
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Intel® Identity Protection Technology (Intel® IPT)	N
Intel® Virtualization Technology (Intel® VT)	VT-d,VT-x
Intel® Secure Key	Y
Intel® OS Guard	Y
Intel® Turbo Boost Technology	2.0
Processor ARK ID	83351
