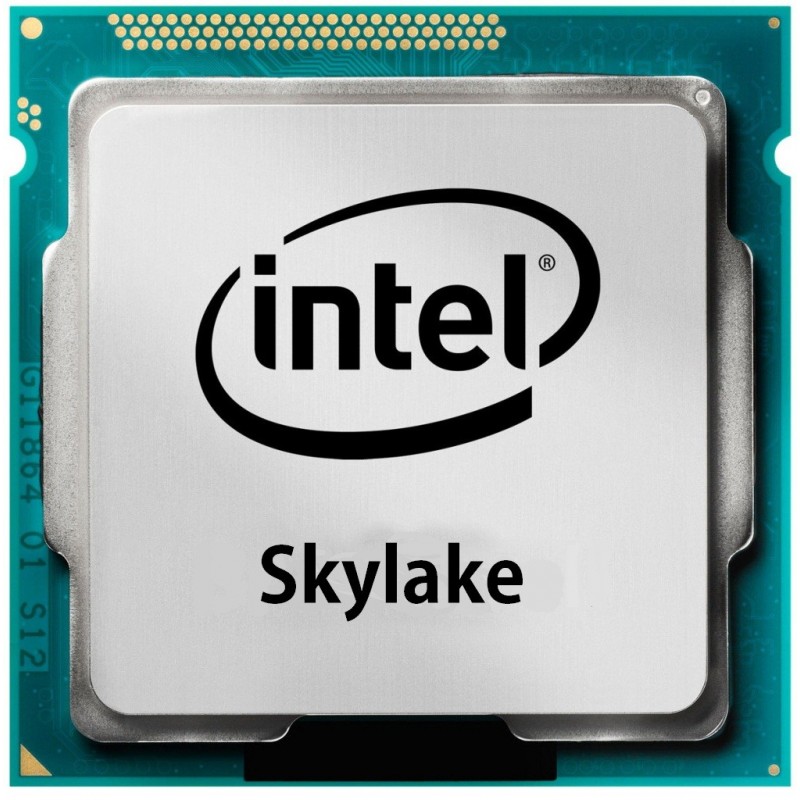

Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
  • Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)
The new generation Intel® Pentium® processor platform delivers the performance needed to power everyday computing experience on the latest capabilities like touch and Intel® Ready Mode Technology to enable an "always on, always available" PC experience. Experience brilliant PC performance as you multitask effortlessly – communicate with friends and family, enjoy entertainment, and get your work done. Get the impressive performance and graphics you’ve come to expect with an Intel Pentium processor.
Bus typeDMI3
CompatibilityIntel Server System R1304SPOSHBN\nIntel Server System R1304SPOSHOR\nIntel Server System R1208SPOSHOR\nIntel Server Board S1200SPL\nIntel Server Board S1200SPS\nIntel Server Board S1200SPO
Compatible chipsetsIntel B150,Intel H110,Intel H170,Intel Q150,Intel Q170,Intel Z170
Component forPC
CPU configuration (max)1
Graphics & IMC lithography14 nm
Maximum internal memory65536 MB
Maximum number of PCI Express lanes16
On-board graphics adapter modelIntel HD Graphics 530
PCI Express configurations1x16,1x8+2x4,2x8
PCI Express slots version3.0
Processor cache3072 KB
Processor codeSR2HM
Processor codenameSkylake
Processor cores2
Processor familyIntel Pentium G
Processor frequency3.6 GHz
Processor lithography14 nm
Processor modelG4520
Processor operating modes64-bit
Processor socketLGA1151
Processor threads2
Product type4
Scalability1S
SteppingS0
Supported instruction setsSSE4.1,SSE4.2
System bus rate8 GT/s
Thermal Design Power (TDP)51 W
Thermal solution specificationPCG 2015C
Processor cache typeSmart Cache
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)34.1 GB/s
Memory channels supported by processorDual
Memory voltage supported by processor1.35 V
Processor package size37.5 x 37.5 mm
On-board graphics adapter outputs supportedDVI,DisplayPort,Embedded DisplayPort (eDP),HDMI
On-board graphics adapter base frequency350 Mhz
On-board graphics adapter dynamic frequency (max)1050 MHz
Maximum on-board graphics adapter memory64 GB
On-board graphics adapter maximum resolution (HDMI)4096 x 2304 pixels
On-board graphics adapter maximum resolution (DisplayPort)4096 x 2304 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel)4096 x 2304 pixels
On-board graphics adapter DirectX version12.0
On-board graphics adapter OpenGL version4.4
Processor seriesIntel Pentium G4500 Series For Desktop
StatusLaunched
On-board graphics adapter refresh rate at maximum resolution (HDMI)24 Hz
On-board graphics adapter refresh rate at maximum resolution (DisplayPort)60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel)60 Hz
Product familyIntel Pentium Processor
Number of displays supported (on-board graphics)3
Processor ARK ID90732

CM8066201927407.pdf

Intel G4520 Data Sheet

Download (3.51M)

Similar products

  • Intel Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)
  • Intel Intel® Xeon® Processor E3-1280 v3 (8M Cache, 3.60 GHz)
    Intel Intel® Xeon® Processor E3-1280 v3 (8M Cache, 3.60 GHz)
  • Intel Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)
  • Intel Intel® Xeon® Processor E3-1240 v3 (8M Cache, 3.40 GHz)
    Intel Intel® Xeon® Processor E3-1240 v3 (8M Cache, 3.40 GHz)
  • Intel Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)
    Intel Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)

Intel Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz)

Intel® Pentium® Processor G4520
(3M Cache, 3.60 GHz)

CM8066201927407

Out of Stock

£107.75
£89.79 Ex VAT.
