Bus type | DMI3 |
Component for | PC |
CPU configuration (max) | 1 |
Maximum number of PCI Express lanes | 16 |
On-board graphics adapter model | Intel HD Graphics 630 |
PCI Express configurations | 1x16,1x8+2x4,2x8 |
PCI Express slots version | 3.0 |
Processor cache | 3 MB |
Processor code | SR35F |
Processor codename | Kaby Lake |
Processor cores | 2 |
Processor family | Intel Pentium G |
Processor frequency | 3.6 GHz |
Processor lithography | 14 nm |
Processor model | G4600 |
Processor operating modes | 64-bit |
Processor socket | Socket H4 (LGA 1151) |
Processor threads | 4 |
Scalability | 1S |
Stepping | S0 |
Supported instruction sets | SSE4.1,SSE4.2 |
System bus rate | 8 GT/s |
Thermal Design Power (TDP) | 51 W |
Thermal solution specification | PCG 2015C |
Tjunction | 100 °C |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
Memory channels supported by processor | Dual |
Memory voltage supported by processor | 1.35 V |
Processor package size | 37.5 x 37.5 mm |
On-board graphics adapter outputs supported | DisplayPort,Embedded DisplayPort (eDP),HDMI |
On-board graphics adapter base frequency | 350 Mhz |
On-board graphics adapter dynamic frequency (max) | 1100 MHz |
Maximum on-board graphics adapter memory | 64 GB |
On-board graphics adapter maximum resolution (HDMI) | 4096 x 2304 pixels |
On-board graphics adapter maximum resolution (DisplayPort) | 4096 x 2304 pixels |
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter OpenGL version | 4.4 |
On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
Number of displays supported (on-board graphics) | 3 |

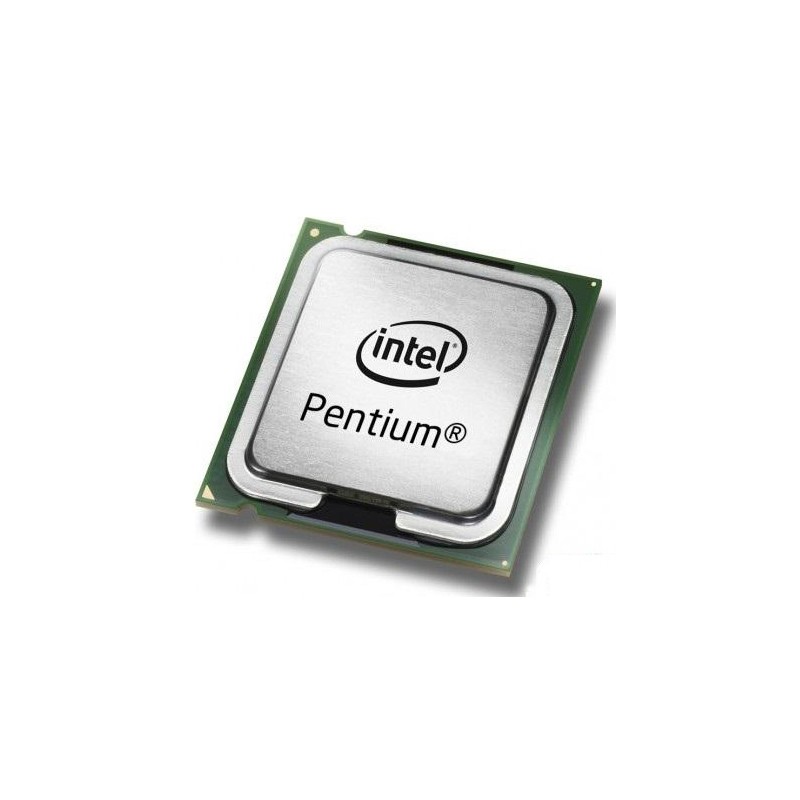

Intel® Pentium® Processor G4600
(3M Cache, 3.60 GHz)
CM8067703015525
Out of Stock
