Bandwidth | 8 MB/s |
Box | No |
Bus type | QPI |
Compatible chipsets | Intel C602, Intel C602J, Intel C604, Intel C606, Intel C608 |
Component for | server/workstation |
CPU configuration (max) | 2 |
ECC | Yes |
Embedded options available | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Execute Disable Bit | Yes |
Idle States | Yes |
Intel AES New Instructions | Yes |
Intel Flex Memory Access | No |
Intel Hyper-Threading Technology | Yes |
Intel Identity Protection Technology | No |
Intel Smart Cache | Yes |
Intel Trusted Execution Technology | Yes |
Intel Virtualization Technology | VT-d, VT-x |
Intel vPro Technology | No |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Memory bandwidth (max) | 51.2 GB/s |
Memory channels | Quad |
Number of QPI links | 2 |
On-board graphics adapter | No |
PCI Express slots quantity | 40 |
Processor code | SR0LZ |
Processor cores | 8 |
Processor family | Intel Xeon |
Processor frequency | 2.1 GHz |
Processor model | E5-2658 |
Processor socket | Socket R (LGA 2011) |
Processor threads | 16 |
Stepping | C2 |
Supported memory clock speeds | 800, 1066, 1333, 1600 MHz |
System bus rate | 8 GT/s |
Tcase | 88 °C |
VID Voltage Range | 0.6 - 1.35 V |

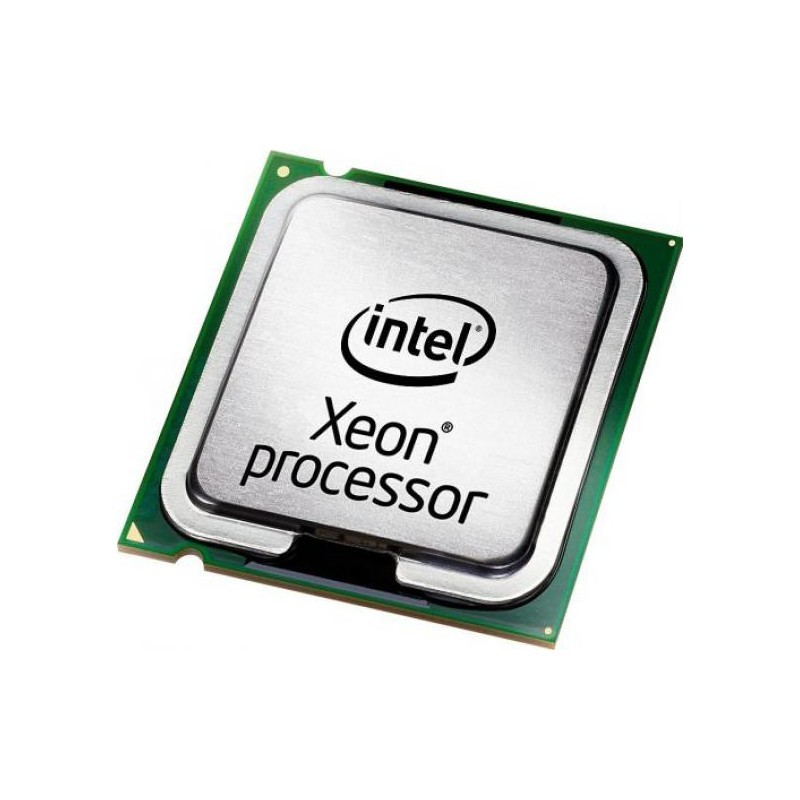

Intel® Xeon® Processor E5-2658
(20M, 2.10 GHz, 8.0 GT/s Intel® QPI)
CM8062101042805
Out of Stock
