Intel E3-1240 v6
  • Intel E3-1240 v6
  • Intel E3-1240 v6
  • Intel E3-1240 v6
  • Intel E3-1240 v6
  • Intel E3-1240 v6
  • Intel E3-1240 v6
  • Intel E3-1240 v6
  • Intel E3-1240 v6
Intel® vPro Technology

Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.



Intel® Hyper-Threading Technology

Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.



Intel® Virtualization Technology (VT-x)

Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.



Intel® Virtualization Technology for Directed I/O (VT-d)

Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
BoxYes
Bus typeDMI3
CompatibilityServer Board S1200SPLR\nServer Board S1200SPOR\nServer Board S1200SPSR\nServer System R1304SPOSHBNR\nServer System R1304SPOSHORR\nServer System R1208SPOSHORR
Component forserver/workstation
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Trusted Execution TechnologyYes
Intel TSX-NIYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Maximum number of PCI Express lanes16
On-board graphics adapterNo
PCI Express configurations1x16,1x8+2x4,2x8
PCI Express slots version3.0
Processor boost frequency4.1 GHz
Processor cache8 MB
Processor codeSR327
Processor codenameKaby Lake
Processor cores4
Processor familyIntel Xeon E3 v6
Processor frequency3.7 GHz
Processor lithography14 nm
Processor modelE3-1240V6
Processor operating modes64-bit
Processor socketLGA 1151 (Socket H4)
Processor threads8
Scalability1S
SteppingB0
Supported instruction setsAVX 2.0,SSE4.1,SSE4.2
System bus rate8 GT/s
Thermal Design Power (TDP)72 W
Thermal Monitoring TechnologiesYes
VID Voltage Range0.55 - 1.52 V
Processor cache typeSmart Cache
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor1866,2400 MHz
Memory bandwidth supported by processor (max)37.5 GB/s
Memory channels supported by processorDual
ECC supported by processorYes
Intel Virtualization Technology (VT-x)Yes
Intel Clear Video TechnologyNo
Processor package size37.5 x 37.5 mm
Launch dateQ1'17
StatusLaunched
On-board graphics adapter 4K supportNo
Intel Software Guard Extensions (Intel SGX)Yes
Conflict Free processorYes
Intel® vPro™ TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Secure KeyYes
Intel® OS GuardYes
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video TechnologyNo
Processor ARK ID97469
Intel® InTru™ 3D TechnologyNo

BX80677E31240V6.pdf

Intel E3-1240 v6 Data Sheet

Download (613.53k)

Similar products

  • Intel Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1275 v3...
  • Intel Intel® Xeon® Processor E3-1280 v3 (8M Cache, 3.60 GHz)
    Intel Intel® Xeon® Processor E3-1280 v3...
  • Intel Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1270 v3...
  • Intel Intel® Xeon® Processor E3-1240 v3 (8M Cache, 3.40 GHz)
    Intel Intel® Xeon® Processor E3-1240 v3...
  • Intel Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)
    Intel Intel® Xeon® Processor E3-1230 v3...

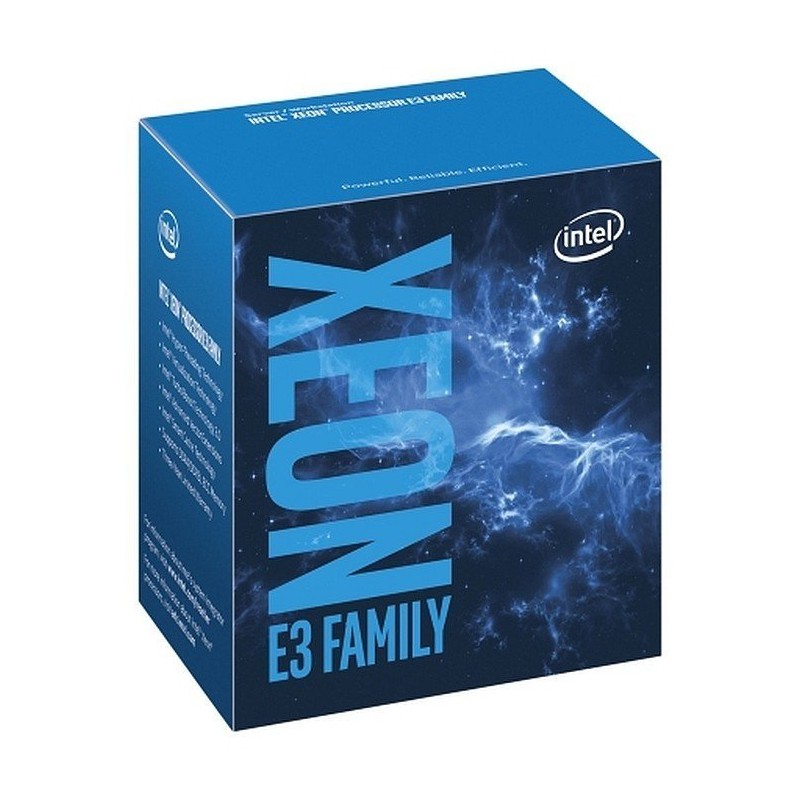

Intel E3-1240 v6

Xeon Processor E3-1240 v6 8M Cache, 3.70 GHz

BX80677E31240V6

Out of Stock

£334.58
£278.82 Ex VAT.
