Box | N |
Bus type | QPI |
Compatibility | Intel Server System R1208WT2GSR\nIntel Server System R1208WTTGSR\nIntel Server System R2208WTTYSR\nIntel Server System R2208WT2YSR\nIntel Server System R2208WTTYC1R\nIntel Server System R2308WTTYSR\nIntel Server System R2312WTTYSR\nIntel Server System R22 |
Component for | server/workstation |
CPU configuration (max) | 2 |
Embedded options available | Y |
Enhanced Intel SpeedStep Technology | Y |
Execute Disable Bit | Y |
Idle States | Y |
Intel 64 | Y |
Intel Demand Based Switching | Y |
Intel Enhanced Halt State | Y |
Intel Flex Memory Access | N |
Intel Trusted Execution Technology | Y |
Intel TSX-NI | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Maximum internal memory | 1572864 MB |
Maximum number of PCI Express lanes | 40 |
Number of QPI links | 2 |
On-board graphics adapter | N |
PCI Express slots version | 3.0 |
Physical Address Extension (PAE) | 46 bit |
Processor cache | 20480 KB |
Processor code | SR2P1 |
Processor codename | Broadwell |
Processor cores | 8 |
Processor family | Intel Xeon E5 v4 |
Processor frequency | 1.7 GHz |
Processor lithography | 14 nm |
Processor model | E5-2609V4 |
Processor operating modes | 64-bit |
Processor socket | LGA 2011-v3 |
Processor threads | 8 |
Product type | 4 |
Scalability | 2S |
Stepping | R0 |
Supported instruction sets | AVX 2.0 |
System bus rate | 6.4 GT/s |
Tcase | 74 °C |
Thermal Design Power (TDP) | 85 W |
Thermal Monitoring Technologies | Y |
VID Voltage Range | 0 - 0 V |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 1536 GB |
Memory types supported by processor | DDR4-SDRAM |
Memory clock speeds supported by processor | 1600,1866 MHz |
Memory bandwidth supported by processor (max) | 59.7 GB/s |
Memory channels supported by processor | Quad |
ECC supported by processor | Y |
Intel Virtualization Technology (VT-x) | Y |
Processor package size | 52.5 x 51 mm |
Processor series | Intel Xeon E5-2600 v4 |
Status | Launched |
Conflict Free processor | Y |
Product family | Intel Xeon Processor E5 v4 Family |
Intel® vPro™ Technology | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | N |
Intel® Identity Protection Technology (Intel® IPT) | N |
Intel® Secure Key | Y |
Intel® OS Guard | Y |
Intel® Turbo Boost Technology | N |
Processor ARK ID | 92990 |

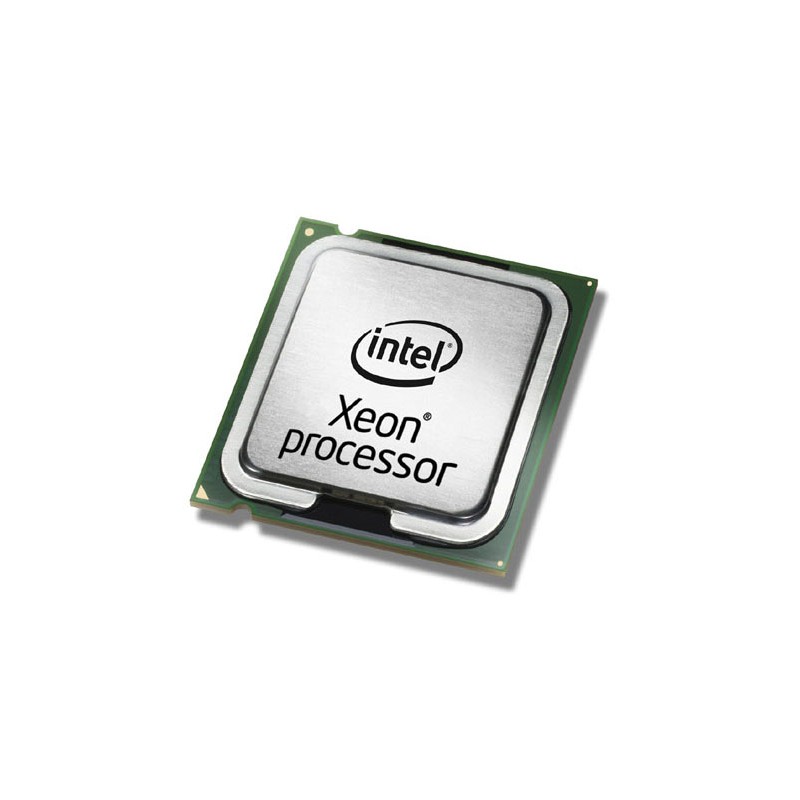

Intel Intel® Xeon® Processor E5-2609 v4 (20M Cache, 1.70 GHz) Data Sheet
Download (688.79k)Intel® Xeon® Processor E5-2609 v4
(20M Cache, 1.70 GHz)
CM8066002032901
