Box | Yes |
Bus type | DMI3 |
Component for | server/workstation |
CPU configuration (max) | 1 |
Embedded options available | No |
Enhanced Intel SpeedStep Technology | Yes |
Execute Disable Bit | Yes |
Idle States | Yes |
Intel 64 | Yes |
Intel Trusted Execution Technology | Yes |
Intel TSX-NI | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Maximum number of PCI Express lanes | 16 |
On-board graphics adapter | Yes |
On-board graphics adapter model | Intel HD Graphics P630 |
PCI Express configurations | 1x16,1x8+2x4,2x8 |
PCI Express slots version | 3.0 |
Processor boost frequency | 3.7 GHz |
Processor cache | 8 MB |
Processor codename | Kaby Lake |
Processor cores | 4 |
Processor family | Intel Xeon E3 v6 |
Processor frequency | 3.3 GHz |
Processor lithography | 14 nm |
Processor model | E3-1225 v6 |
Processor operating modes | 64-bit |
Processor socket | LGA 1151 (Socket H4) |
Processor threads | 4 |
Scalability | 1S |
Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
System bus rate | 8 GT/s |
Thermal Design Power (TDP) | 73 W |
Thermal Monitoring Technologies | Yes |
VID Voltage Range | 0.55 - 1.52 V |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L,DDR4-SDRAM |
Memory clock speeds supported by processor | 1866,2400 MHz |
Memory bandwidth supported by processor (max) | 37.5 GB/s |
Memory channels supported by processor | Dual |
ECC supported by processor | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel Clear Video Technology | Yes |
Processor package size | 37.5 x 37.5 mm |
On-board graphics adapter outputs supported | DVI,DisplayPort,Embedded DisplayPort (eDP),HDMI |
On-board graphics adapter base frequency | 350 Mhz |
On-board graphics adapter dynamic frequency (max) | 1150 MHz |
Maximum on-board graphics adapter memory | 1.7 GB |
On-board graphics adapter maximum resolution (HDMI) | 4096 x 2160 pixels |
On-board graphics adapter maximum resolution (DisplayPort) | 4096 x 2304 pixels |
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter OpenGL version | 4.4 |
On-board graphics adapter 4K support | Yes |
On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
Intel Software Guard Extensions (Intel SGX) | Yes |
Conflict Free processor | Yes |
Number of displays supported (on-board graphics) | 3 |
Intel® vPro™ Technology | Yes |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | Yes |
Processor ARK ID | 97476 |
Intel® InTru™ 3D Technology | Yes |
Cooler included | No |

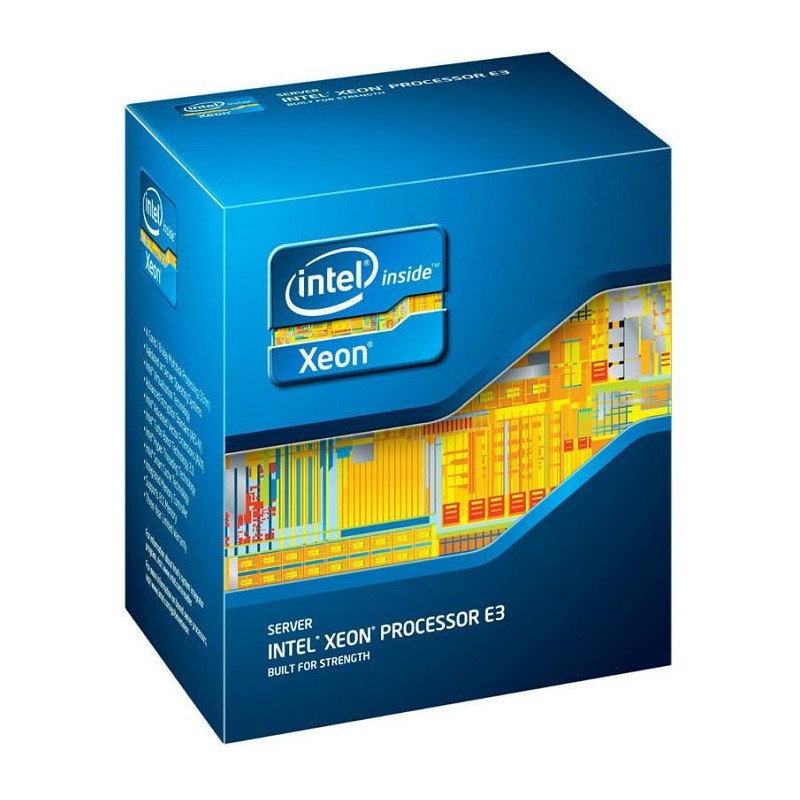

Xeon Processor E3-1225 v6 (8M Cache, 3.30 GHz)
BX80677E31225V6
Out of Stock
