Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
  • Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)
The 6th generation Intel® Core™ i7 processors deliver a new class of computing with a host of new features to power the next generation of laptops and 2 in 1 PCs. Expect lighting fast speeds and peak performance through even the toughest of tasks and games. The built-in revolutionary Intel® Hyper-Threading Technology allows each processor core to work on two tasks at the same time for smoother multitasking while Intel® Iris™ graphics delivers stunning 3D visuals and faster, more advanced video and photo editing. Game the way you want and push the boundaries with overclocking for your most demanding gaming needs. The ultimate in peak performance.



Ready. Wake. Create.

From zero to power in a flash, the 6th generation Intel® Core™ processor wakes quicker than ever and lets you switch in and out of apps more seamlessly than ever.



Stunning Visual Experiences

With 6th generation Intel® Core™ processor Ultra HD graphics, your screen comes to life. Watch in a whole new way with 4k screens. Wireless displays let you create and game anywhere.



Security You Can Trust

Worry-free and hassle-free security is yours. With facial recognition and True Key™ technology, getting you logged in and protected has never been easier or more secure.
Bus typeDMI3
Compatible chipsetsIntel B150,Intel H110,Intel H170,Intel Q150,Intel Q170,Intel Z170
Component forPC
CPU configuration (max)1
Graphics & IMC lithography14 nm
Maximum internal memory65536 MB
Maximum number of PCI Express lanes16
On-board graphics adapter modelIntel HD Graphics 530
PCI Express configurations1x16,1x8+2x4,2x8
PCI Express slots version3.0
Processor boost frequency3.4 GHz
Processor cache8192 KB
Processor codeSR2LP
Processor codenameSkylake
Processor cores4
Processor familyIntel Core i7-6xxx
Processor frequency2.4 GHz
Processor lithography14 nm
Processor modeli7-6700TE
Processor operating modes64-bit
Processor socketLGA1151
Processor threads8
Product type4
Scalability1S
SteppingR0
Supported instruction setsAVX 2.0,SSE4.1,SSE4.2
System bus rate8 GT/s
Thermal Design Power (TDP)35 W
Thermal solution specificationPCG 2015A
Processor cache typeSmart Cache
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)34.1 GB/s
Memory channels supported by processorDual
Memory voltage supported by processor1.35 V
Processor package size37.5 x 37.5 mm
On-board graphics adapter outputs supportedDVI,DisplayPort,Embedded DisplayPort (eDP),HDMI
On-board graphics adapter base frequency350 Mhz
On-board graphics adapter dynamic frequency (max)1000 MHz
Maximum on-board graphics adapter memory64 GB
On-board graphics adapter maximum resolution (HDMI)4096 x 2304 pixels
On-board graphics adapter maximum resolution (DisplayPort)4096 x 2304 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel)4096 x 2304 pixels
On-board graphics adapter DirectX version12.0
On-board graphics adapter OpenGL version4.4
Processor seriesIntel Core i7-6700 Desktop series
StatusLaunched
On-board graphics adapter refresh rate at maximum resolution (HDMI)24 Hz
On-board graphics adapter refresh rate at maximum resolution (DisplayPort)60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel)60 Hz
Product family6th Generation Intel Core i7 Processors
Number of displays supported (on-board graphics)3
Intel® Turbo Boost Technology2.0
Processor ARK ID88201

CM8066201937801.pdf

Intel i7-6700TE Data Sheet

Download (3.51M)

Similar products

  • Intel Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1275 v3...
  • Intel Intel® Xeon® Processor E3-1280 v3 (8M Cache, 3.60 GHz)
    Intel Intel® Xeon® Processor E3-1280 v3...
  • Intel Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1270 v3...
  • Intel Intel® Xeon® Processor E3-1240 v3 (8M Cache, 3.40 GHz)
    Intel Intel® Xeon® Processor E3-1240 v3...
  • Intel Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)
    Intel Intel® Xeon® Processor E3-1230 v3...

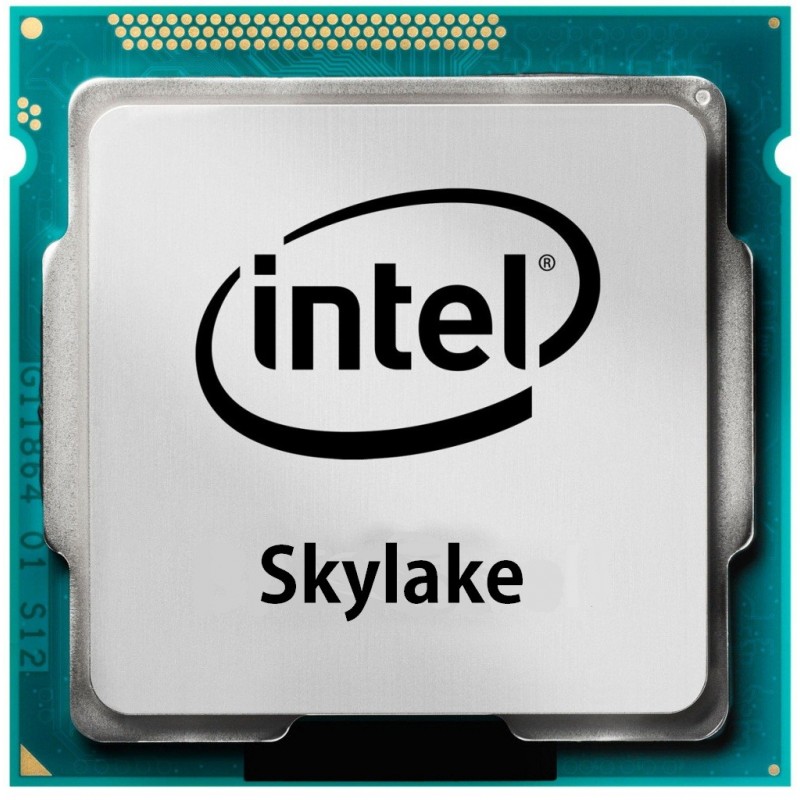

Intel Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz)

Intel® Core™ i7-6700TE Processor
(8M Cache, up to 3.40 GHz)

CM8066201937801

Out of Stock

£351.79
£293.16 Ex VAT.
