Bus type | QPI |
Compatibility | Intel Server System R1208WT2GSR\nIntel Server System R1208WTTGSR\nIntel Server System R1304WT2GSR\nIntel Server System R1304WTTGSR\nIntel Server System R2208WTTYSR\nIntel Server System R2208WT2YSR\nIntel Server System R2208WTTYC1R\nIntel Server System R23 |
Component for | server/workstation |
CPU configuration (max) | 2 |
Maximum internal memory | 1572864 MB |
Maximum number of PCI Express lanes | 40 |
Number of QPI links | 2 |
PCI Express slots version | 3.0 |
Physical Address Extension (PAE) | 46 bit |
Processor boost frequency | 3.6 GHz |
Processor cache | 25600 KB |
Processor code | SR2P5 |
Processor codename | Broadwell |
Processor cores | 8 |
Processor family | Intel Xeon E5 v4 |
Processor frequency | 3.2 GHz |
Processor lithography | 14 nm |
Processor model | E5-2667V4 |
Processor operating modes | 64-bit |
Processor socket | LGA 2011-v3 |
Processor threads | 16 |
Product type | 4 |
Scalability | 2S |
Stepping | R0 |
Supported instruction sets | AVX 2.0 |
System bus rate | 9.6 GT/s |
Tcase | 78 °C |
Thermal Design Power (TDP) | 135 W |
VID Voltage Range | 0 - 0 V |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 1536 GB |
Memory types supported by processor | DDR4-SDRAM |
Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
Memory bandwidth supported by processor (max) | 76.8 GB/s |
Memory channels supported by processor | Quad |
Processor package size | 52.5 x 51 mm |
Processor series | Intel Xeon E5-2600 v4 |
Status | Launched |
Product family | Intel Xeon Processor E5 v4 Family |
Intel® Turbo Boost Technology | 2.0 |
Processor ARK ID | 92979 |

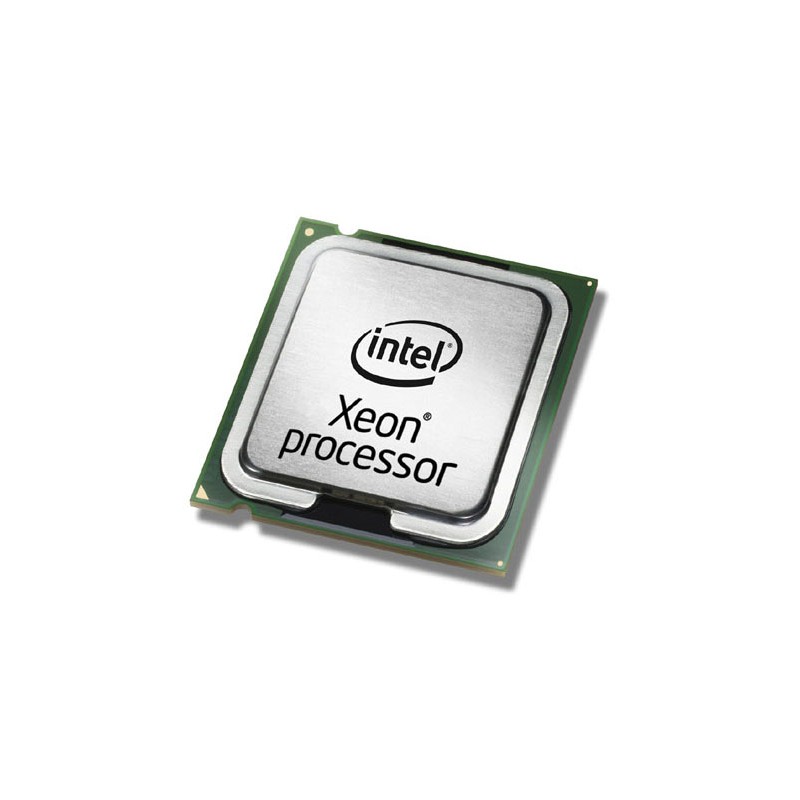

Intel® Xeon® Processor E5-2667 v4
(25M Cache, 3.20 GHz)
CM8066002041900
Out of Stock
