Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
  • Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)
Powerful Delivery

Support greater HD and UHD video trans code performance with up to 18 AVC video trans codes per processor and up to 2 HEVC trans codes per processor.



Built for Professionals

Step up to the performance and visuals demanded by professional-grade CAD or media and entertainment applications.



Reliability for Small and Medium Businesses

No matter what the size of your business, the value of your data is enormous. Keep it accessible and better protected at all times with an affordable Intel Xeon processor E3-1200 v6 product family-based server.



High Image Quality

Improve visual experiences with Intel® Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.
Bus typeDMI3
Component forserver/workstation
CPU configuration (max)1
Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel Trusted Execution TechnologyYes
Intel TSX-NIYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Maximum internal memory65536 MB
Maximum number of PCI Express lanes16
On-board graphics adapterYes
On-board graphics adapter modelIntel HD Graphics P630
PCI Express configurations1x16,2x8,1x8+2x4
PCI Express slots version3.0
Processor boost frequency4.2 GHz
Processor cache8192 KB
Processor codenameKaby Lake
Processor cores4
Processor familyIntel Xeon E3 v6
Processor frequency3.80 GHz
Processor lithography14 nm
Processor modelE3-1275 v6
Processor operating modes64-bit
Processor socketLGA 1151 (Socket H4)
Processor threads8
Product type4
Scalability1S
SteppingB0
Supported instruction setsAVX 2.0,SSE4.1,SSE4.2
System bus rate8 GT/s
Thermal Design Power (TDP)73 W
Thermal Monitoring TechnologiesYes
VID Voltage Range0.55 - 1.52 V
Processor cache typeSmart Cache
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor1866,2400 MHz
Memory bandwidth supported by processor (max)37.5 GB/s
Memory channels supported by processorDual
ECC supported by processorYes
Intel Virtualization Technology (VT-x)Yes
Intel Clear Video TechnologyYes
Processor package size37.5 x 37.5 mm
On-board graphics adapter outputs supportedDVI,DisplayPort,Embedded DisplayPort (eDP),HDMI
On-board graphics adapter base frequency350 Mhz
On-board graphics adapter dynamic frequency (max)1150 MHz
Maximum on-board graphics adapter memory1.7 GB
On-board graphics adapter maximum resolution (HDMI)4096 x 2160 pixels
On-board graphics adapter maximum resolution (DisplayPort)4096 x 2304 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel)4096 x 2304 pixels
On-board graphics adapter DirectX version12.0
On-board graphics adapter OpenGL version4.4
Processor seriesIntel Xeon E3-1200 v6
StatusLaunched
On-board graphics adapter ID0x191D
Video decodingYes
On-board graphics adapter 4K supportYes
On-board graphics adapter refresh rate at maximum resolution (HDMI)24 Hz
On-board graphics adapter refresh rate at maximum resolution (DisplayPort)60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel)60 Hz
Intel Software Guard Extensions (Intel SGX)Yes
Conflict Free processorYes
Product familyIntel Xeon Processor E3 v6 Family
Number of displays supported (on-board graphics)3
Intel® vPro™ TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Secure KeyYes
Intel® OS GuardYes
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video TechnologyYes
Processor ARK ID97478
Intel® InTru™ 3D TechnologyYes

Similar products

  • Intel Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1275 v3...
  • Intel Intel® Xeon® Processor E3-1280 v3 (8M Cache, 3.60 GHz)
    Intel Intel® Xeon® Processor E3-1280 v3...
  • Intel Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1270 v3...
  • Intel Intel® Xeon® Processor E3-1240 v3 (8M Cache, 3.40 GHz)
    Intel Intel® Xeon® Processor E3-1240 v3...
  • Intel Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)
    Intel Intel® Xeon® Processor E3-1230 v3...

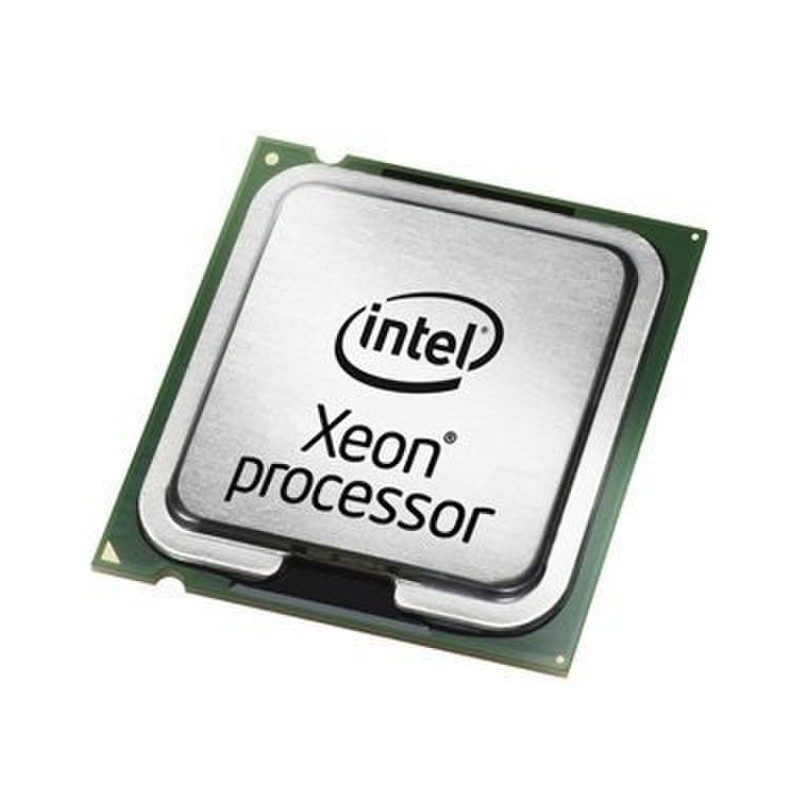

Intel Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz)

Intel® Xeon® Processor E3-1275 v6
(8M Cache, 3.80 GHz)

CM8067702870931

Out of Stock

£401.13
£334.27 Ex VAT.
