Box | No |
Bus type | QPI |
Component for | server/workstation |
CPU configuration (max) | 2 |
ECC | Yes |
Embedded options available | No |
Enhanced Intel SpeedStep Technology | Yes |
Execute Disable Bit | Yes |
Idle States | Yes |
Intel AES New Instructions | Yes |
Intel Demand Based Switching | Yes |
Intel Enhanced Halt State | Yes |
Intel Flex Memory Access | No |
Intel Hyper-Threading Technology | Yes |
Intel Identity Protection Technology | No |
Intel Secure Key | Yes |
Intel Smart Cache | Yes |
Intel Trusted Execution Technology | Yes |
Intel TSX-NI | No |
Intel Virtualization Technology | VT-d,VT-x |
Intel vPro Technology | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
L3 cache | 40 MB |
Memory bandwidth (max) | 68 GB/s |
Memory channels | Quad |
Number of QPI links | 2 |
On-board graphics adapter | No |
OS Guard | Yes |
Processor boost frequency | 3.6 GHz |
Processor code | SR1XE |
Processor cores | 16 |
Processor family | Intel Xeon E5 v3 |
Processor lithography | 22 nm |
Processor model | E5-2698V3 |
Processor socket | LGA 2011-v3 |
Processor threads | 32 |
Scalability | 2S |
Stepping | C1 |
Supported instruction sets | AVX |
Supported memory clock speeds | 1600,1866,2133 MHz |
System bus rate | 9.6 GT/s |
Tcase | 87.9 °C |
Thermal Monitoring Technologies | Yes |
VID Voltage Range | 0.65 - 1.3 V |

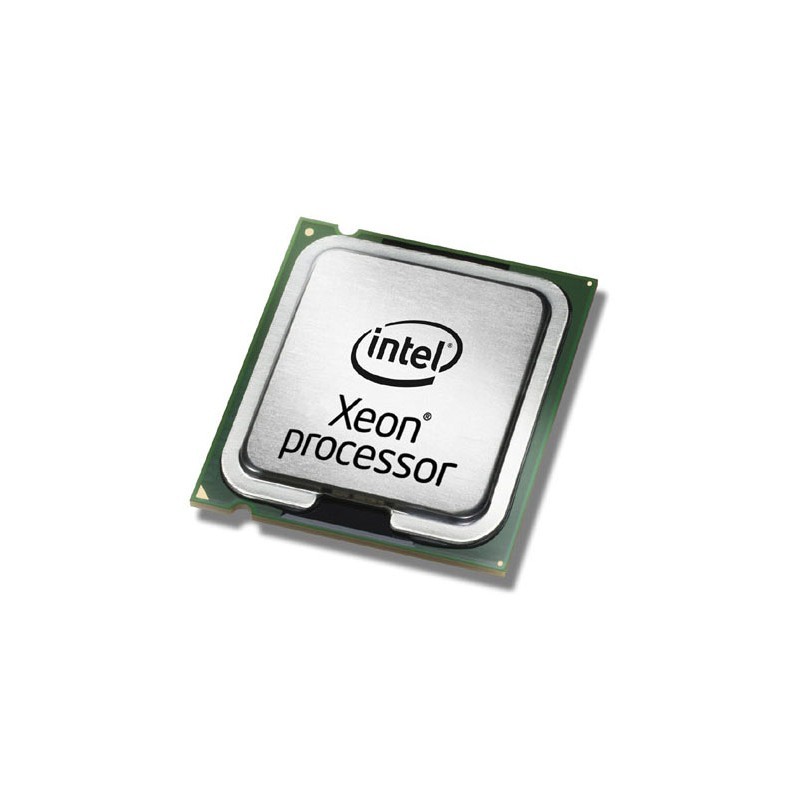

Xeon Processor E5-2698 v3 (40M Cache, 2.30 GHz)
CM8064401609800
Out of Stock
