Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Cable length | 3.6 m |
Certification | cUL/CSA/ETI/UL 1363 |
Colour of product | Beige |
Dimensions (WxDxH) | 44 x 44 x 610 mm |
Input frequency | 50/60 Hz |
Load capacity | 1800 VA |
Nominal input voltage | 120 V |
Operating relative humidity range | 0 - 95 % |
Operating temperature range (T-T) | 0 - 45 °C |
Output connections | 14 x NEMA 5-15R |
Package dimensions (WxDxH) | 178 x 152 x 648 mm |
Rack mounting | 0U |
Source data-sheet | Icecat.biz |
Storage relative humidity range | 0 - 95 % |
Storage temperature range (T-T) | -25 - 65 °C |
Weight | 2180 g |

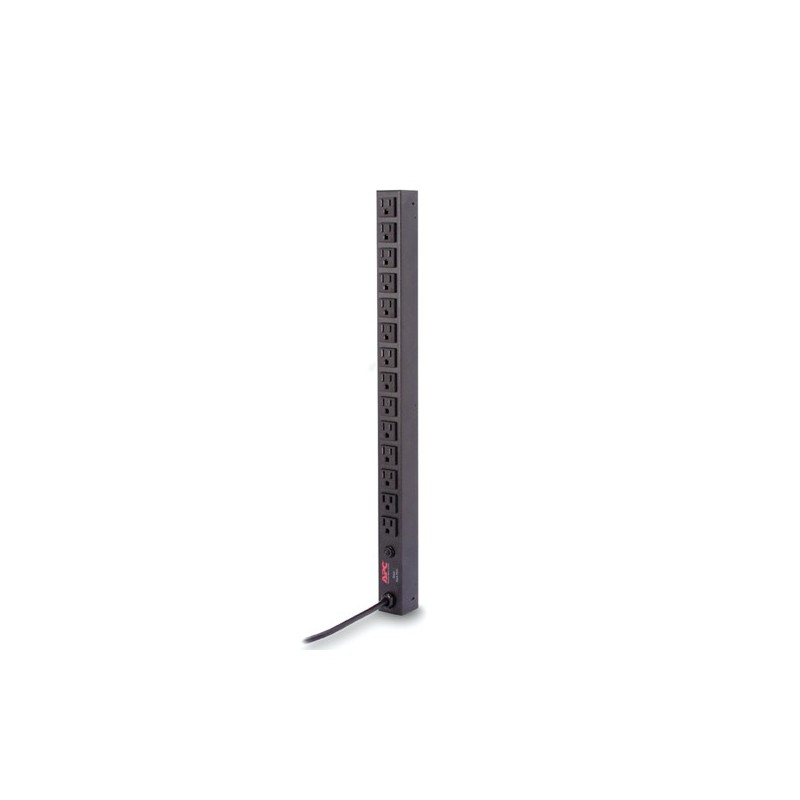

Rack PDU - 0U - 15A - 100/120V
AP9567
