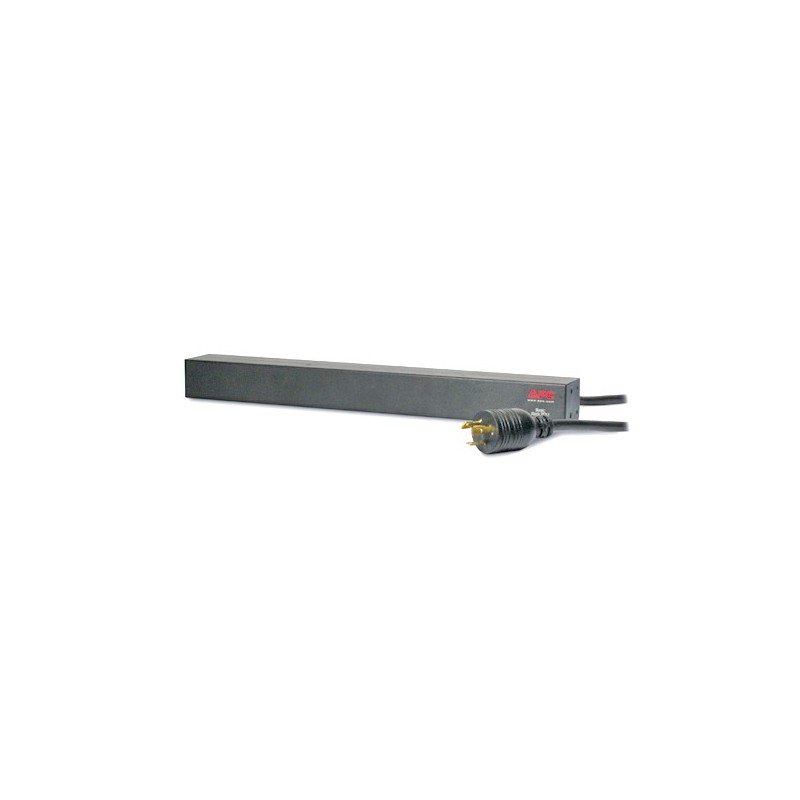

APC Basic Rack PDU AP9566

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Cable length3.66 m
CertificationcUL Listed,CSA,UL 60950,UL Listed, RoHS 7b Exemption
Colour of productBlack
Dimensions (WxDxH)447 x 57 x 44 mm
Input frequency50/60 Hz
Load capacity3328 VA
Maximum input current per phase20 A
Maximum total current draw per phase16 A
Operating temperature range (T-T)0 - 45 °C
Output connections12x IEC 320 C13
Storage temperature range (T-T)-25 - 65 °C
Weight2.5 kg

Similar products

  • APC Basic Rack PDU AP7526
    APC Basic Rack PDU AP7526
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19
    APC RACK PDU. BASIC. ZERO U. 32A. 230V....
  • APC Basic Rack PDU
    APC Basic Rack PDU

APC Basic Rack PDU AP9566

Basic, 1U, 16A, 208V, (12)C13

AP9566

Out of Stock

£241.29
£201.08 Ex VAT.
