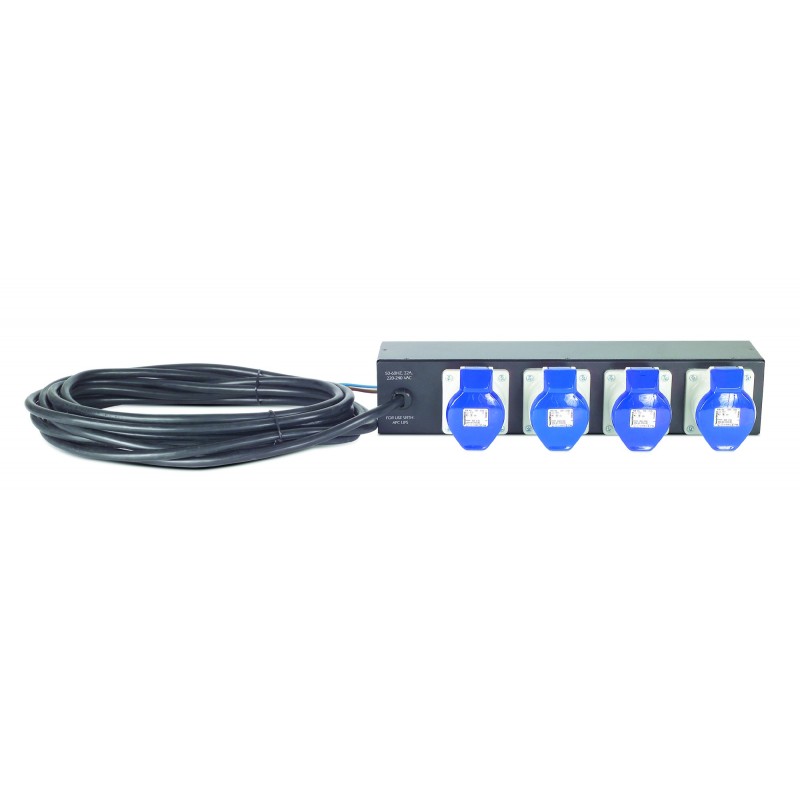

APC Basic Rack PDU Extender AP7586
  • APC Basic Rack PDU Extender AP7586
  • APC Basic Rack PDU Extender AP7586
  • APC Basic Rack PDU Extender AP7586
The most mounting options in the market.

APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.
Cable length8.53 m
Colour of productBlack
Dimensions (WxDxH)437 x 89 x 89 mm
I/O portsHard Wire 3-wire (4) IEC 309
Input connection typeHard Wire 3-wire
Input frequency50 - 60 Hz
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Nominal input voltage230 V
Nominal output voltage230 V
Operating relative humidity (H-H)0 - 45 %
Operating relative humidity range0 - 45 %
Operating temperature (T-T)0 - 45 °C
Operating temperature range (T-T)0 - 45 °C
Output connections(4) IEC 309
Output voltage230 V
Package dimensions (WxDxH)521 x 521 x 152 mm
Package weight5000 g
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight4090 g

Similar products

  • APC Basic Rack PDU AP7526
    APC Basic Rack PDU AP7526
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19
    APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19
  • APC Basic Rack PDU
    APC Basic Rack PDU

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32

RACK PDU BASIC 2U 32A 230V (4) IEC 309-32

AP7586

Out of Stock

£837.74
£698.12 Ex VAT.
