-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Cable length | 3.05 m |
Certification | cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL |
Colour of product | Black |
Dimensions (WxDxH) | 56 x 44 x 1619 mm |
Input connection type | NEMA L5-30P |
Input frequency | 50/60 Hz |
Nominal input voltage | 120 V |
Operating relative humidity range | 0 - 95 % |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | (24) NEMA 5-20R |
Storage relative humidity range | 0 - 95 % |
Storage temperature range (T-T) | -25 - 65 °C |
Weight | 5.57 kg |

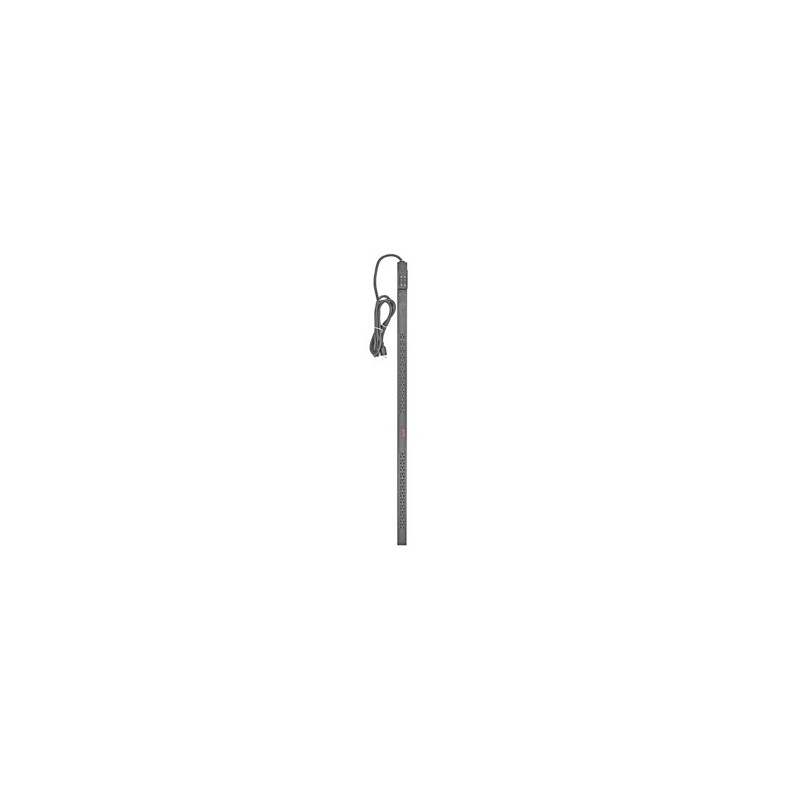

Rack PDU, Basic, Zero U, 30A, 120V, (24) 5-20
AP7532
Out of Stock
