-High Power Density.
-Horizontal mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Cable length | 2.44 m |
Colour of product | Black |
Dimensions (WxDxH) | 437 x 254 x 44 mm |
Input connection type | Hubbell CS8365C |
Input frequency | 50/60 Hz |
Operating relative humidity range | 5 - 95 % |
Operating temperature range (T-T) | -5 - 45 °C |
Output connections | (6) IEC 320 C19 |
Storage relative humidity range | 5 - 95 % |
Storage temperature range (T-T) | -25 - 65 °C |
Weight | 7.98 kg |

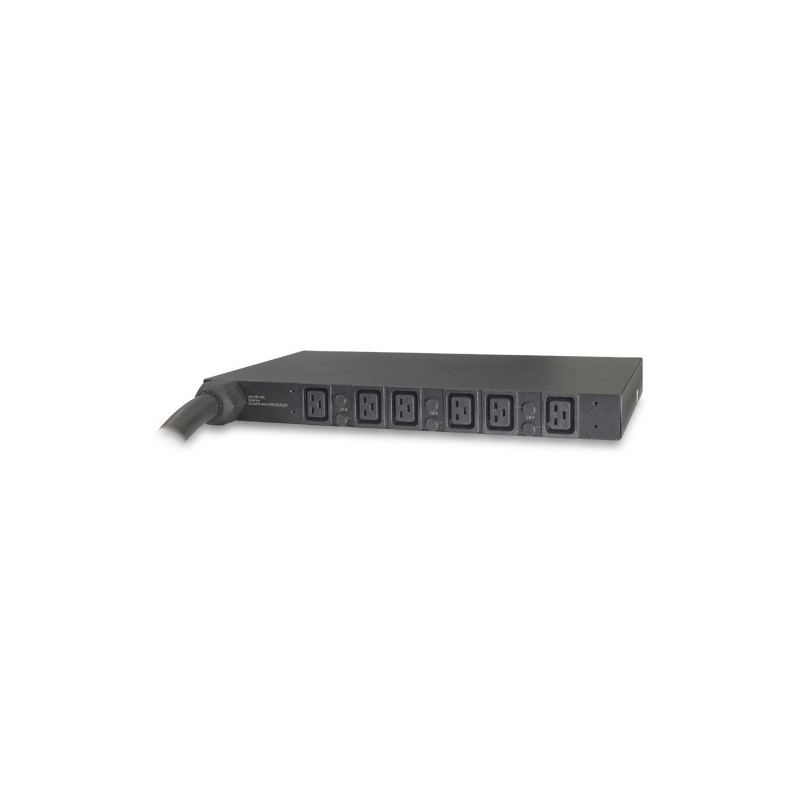

Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19
AP7516
Out of Stock
