APC Basic Rack PDU AP7557
  • APC Basic Rack PDU AP7557
  • APC Basic Rack PDU AP7557
  • APC Basic Rack PDU AP7557
  • APC Basic Rack PDU AP7557
  • APC Basic Rack PDU AP7557

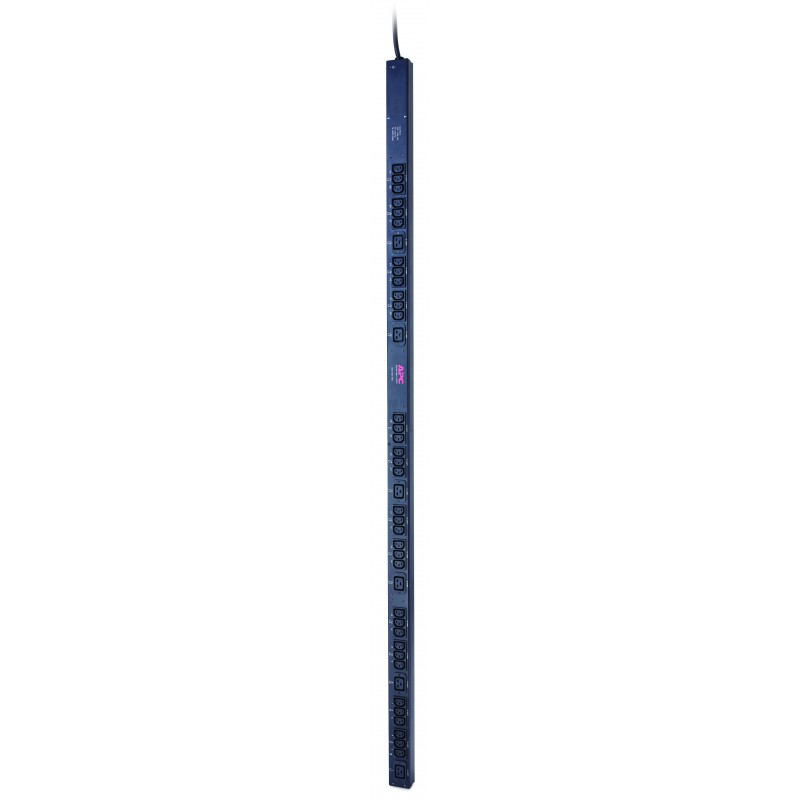

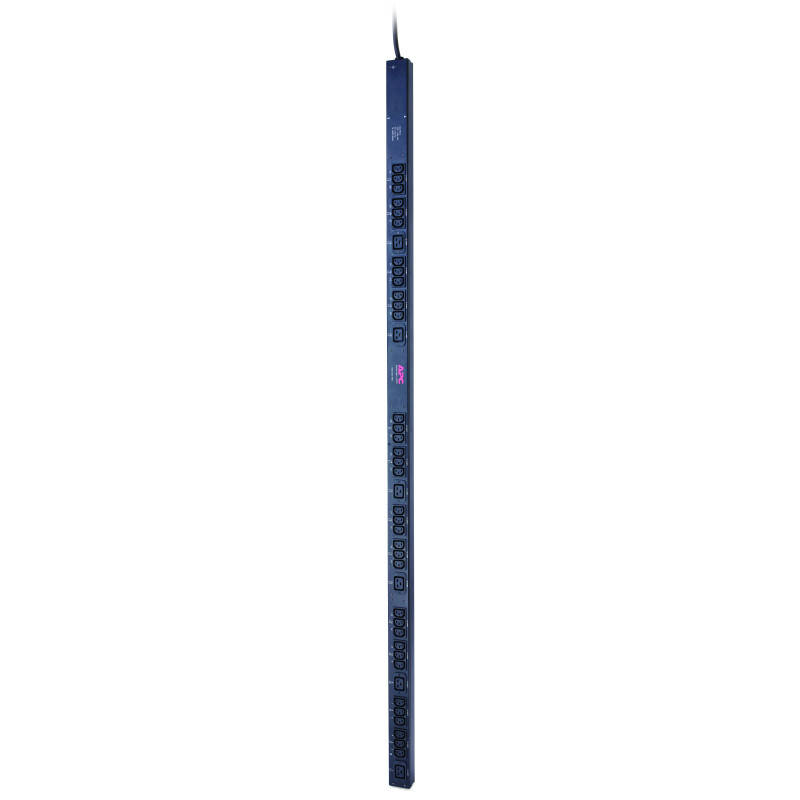

APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.



- Low Cost Power Distribution.

- Vertical mounting capability.

- Toolless mounting capability.

- Multi-branch power input.
Cable length0.91 m
CertificationC-tick,CCC,CE,GOST,MIC,Queensland Australia,VD
Colour of productBlack
Dimensions (WxDxH)56 x 44 x 1619 mm
Input connection typeIEC 309 16A 3P+N+PE
Input frequency47/63 Hz
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Nominal input voltage400 V
Nominal output voltage230 V
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Output connections(36) IEC 320 C13 (6) IEC 320 C19
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight5450 g

Similar products

  • APC Basic Rack PDU AP7526
    APC Basic Rack PDU AP7526
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19
    APC RACK PDU. BASIC. ZERO U. 32A. 230V....
  • APC Basic Rack PDU
    APC Basic Rack PDU

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19

Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19

AP7557

In Stock

£827.71
£689.76 Ex VAT.
