-19 inch Rack-Mountable: Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
-Horizontal mounting capability.
-Vertical mounting capability.
Cable length | 3.66 m |
Certification | cUL,CSA,GOST,METI Denan,UL 1363,UL |
Colour of product | Black |
Dimensions (WxDxH) | 447 x 57 x 44 mm |
Input frequency | 50/60 Hz |
Load capacity | 1800 VA |
Maximum input current per phase | 15 A |
Nominal input voltage | 120 V |
Operating relative humidity range | 5 - 95 % |
Operating temperature range (T-T) | -5 - 45 °C |
Output connections | (10) NEMA 5-15R |
Source data-sheet | Icecat.biz |
Storage relative humidity range | 0 - 95 % |
Storage temperature range (T-T) | -25 - 65 °C |
Weight | 2500 g |

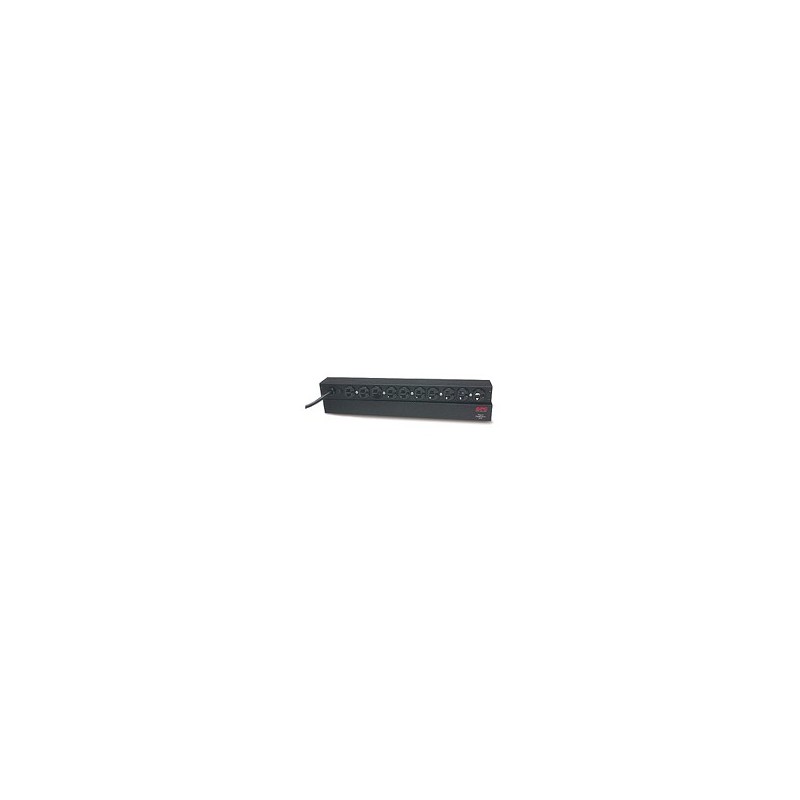

Rack PDU, Basic, 1U, 15A, 120V, (10)5-15
AP9562
Out of Stock
