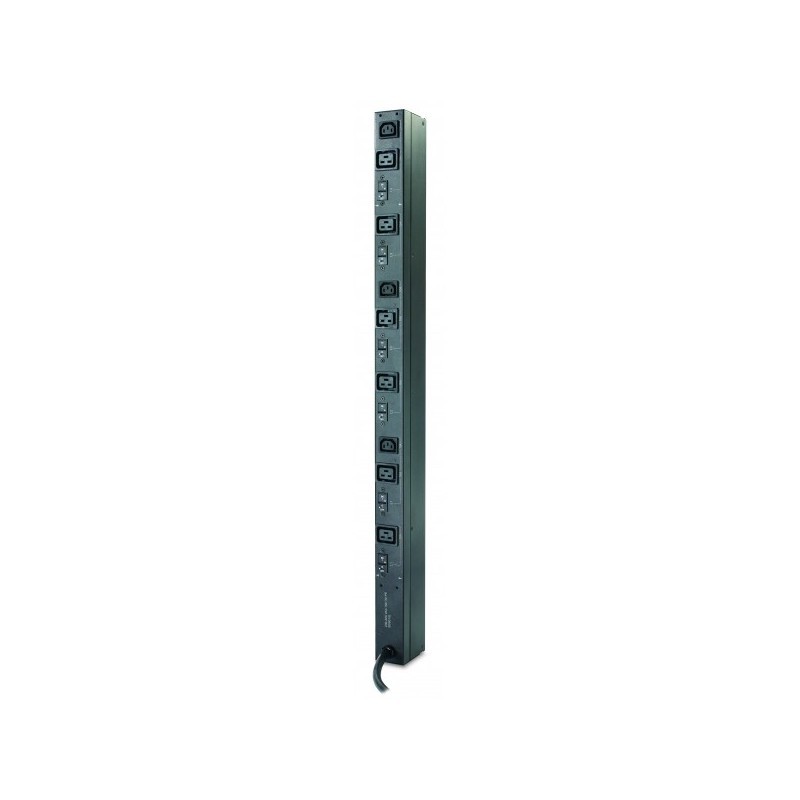

APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Cord Length: 6 feet ( 1.83 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19



Includes: Installation guide, Toolless Mounting Kit.
Cable length1.83 m
Colour of productBlack
Dimensions (WxDxH)55 x 88 x 927 mm
Input connection typeIEC 309 32A 3P+N+PE
Input frequency47/63 Hz
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Nominal output voltage230 V
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Output connections- (3) IEC 320 C13 - (6) IEC 320 C19
Package dimensions (WxDxH)286 x 70 x 1054 mm
Package weight6250 g
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight4750 g

Similar products

  • APC Basic Rack PDU AP7526
    APC Basic Rack PDU AP7526
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19
    APC RACK PDU. BASIC. ZERO U. 32A. 230V....
  • APC Basic Rack PDU
    APC Basic Rack PDU

APC Rack PDU Basic Zero U

Rack PDU, Basic, Zero U, 22kW, 400V, (6) C19 & (3) C13

AP7555A

Out of Stock

£1,030.24
£858.54 Ex VAT.
