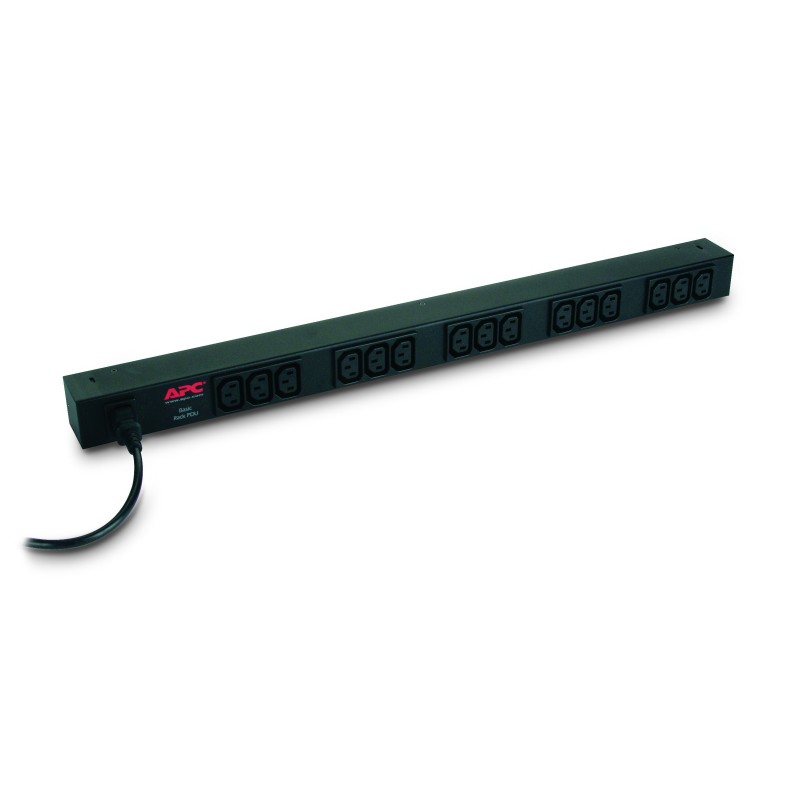

APC Basic Rack PDU AP9568
  • APC Basic Rack PDU AP9568
  • APC Basic Rack PDU AP9568
  • APC Basic Rack PDU AP9568
  • APC Basic Rack PDU AP9568
  • APC Basic Rack PDU AP9568
Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13


Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities


Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit



Output:


Output Voltage(s) (main only) - 208, 230 V


Maximum Total Current Draw per Phase - 10 A


Output Connections - (15)IEC 320 C13


Input:


Nominal input voltage - 208, 230


Input frequency (Hz) - 50/60 Hz


Input Connection Type - IEC-320 C14


Cord Length - 6.5 feet ( 1.98 meters )


Acceptable Input Voltage - 200-240 VAC


Maximum Input Current per phase - 10.0 A


Load Capacity - 2300


Cable length1.98 m
Colour of productBlack
Dimensions (WxDxH)445 x 445 x 609.6 mm
I/O portsOutput Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14
Nominal input voltage208 - 230 V
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 45 °C
Operating temperature range (T-T)0 - 45 °C
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight2000 g

You might also like

  • APC Smart-UPS SMX3000RMHV2UNC
    APC Smart-UPS SMX3000RMHV2UNC
  • APC NetShelter SX 24U 600mm x 1070mm Deep Enclosure
    APC NetShelter SX 24U 600mm x 1070mm Deep...

Similar products

  • APC Basic Rack PDU AP7526
    APC Basic Rack PDU AP7526
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC Basic Rack PDU
    APC Basic Rack PDU
  • APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19
    APC RACK PDU. BASIC. ZERO U. 32A. 230V....
  • APC Basic Rack PDU
    APC Basic Rack PDU

APC RACK PDU BASIC ZERO U 10A 230V

Rack PDU,Basic,Zero U,10A,230V, (15)C13

AP9568

Out of Stock

£325.28
£271.07 Ex VAT.
