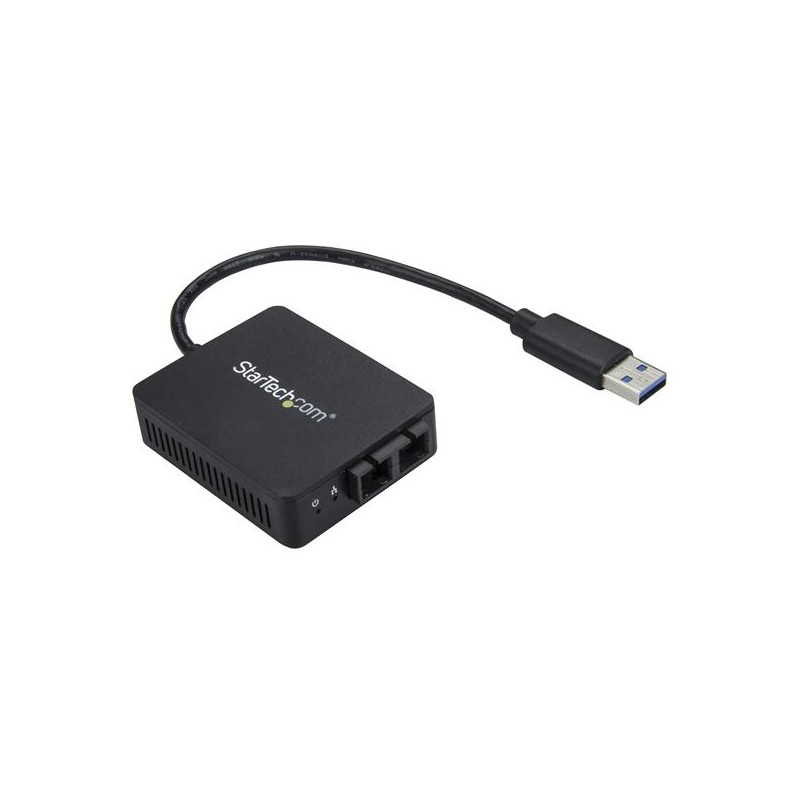

StarTech.com USB 3.0 to Fiber Optic Converter - 1000Base-SX SC
  • StarTech.com USB 3.0 to Fiber Optic Converter - 1000Base-SX SC
  • StarTech.com USB 3.0 to Fiber Optic Converter - 1000Base-SX SC
  • StarTech.com USB 3.0 to Fiber Optic Converter - 1000Base-SX SC
  • StarTech.com USB 3.0 to Fiber Optic Converter - 1000Base-SX SC
  • StarTech.com USB 3.0 to Fiber Optic Converter - 1000Base-SX SC
This USB to fiber-optic converter lets you utilize the USB 3.0 (Type-A) port on your laptop or tablet to provide a secure fiber network connection. Windows® and Mac compatible, the network adapter provides a 1000Mbps Ethernet network connection and 1000Base-SX SC optical transceiver.



Fiber-optic SC port

The USB to fiber-optic converter is equipped with an optical transceiver for 1000Base-SX networks, providing network connectivity with a maximum range of 550 m over multimode fiber.



Secure fiber-to-the-desk connectivity

This USB to fiber converter provides reliable connectivity while protecting your network from problems with electronic interference - a common issue with RJ45 networks. Fiber-to-the-desk connectivity (FTTD) maximizes network security, reducing the risk of data leaks for sensitive information, without compromising network speed and reliability.



Easy portability

Compact and portable, this USB 3.0 fiber-optic converter is powered directly from the USB port, making it easy to connect when you’re on the go.



Plug and play

Get up and running quickly. The converter supports certified drivers for Windows, Mac and Linux®. When you plug the adapter into a USB port, you simply install the drivers and the adapter is ready to transmit over a fiber network.



The US1GA30SXSC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Cable length0.195 m
CertificationCE, FCC
ChipsetRealtek - RTL8153-VB-CG, Microsemi - VSC8211XVW
Connectivity technologyWired
Data transfer rate (max)1000 Mbit/s
Depth260 mm
Fiber ethernet cabling technology1000BASE‑SX
Fiber optic connectorSC
Fiber ports quantity1
Height20 mm
Host interfaceUSB
Interfacefiber
InternalN
LED indicatorsActivity,Link,Power
Linux operating systems supportedY
Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.9 Mavericks
Maximum operating distance550 m
Networking standardsIEEE 802.1Q,IEEE 802.3z
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 60 °C
Package depth142 mm
Package height30 mm
Package weight120 g
Package width170 mm
PCI version3.0
Plug and PlayY
Quick start guideY
RoHS complianceY
Server operating systems supportedWindows Server 2008,Windows Server 2012,Windows Server 2016
Storage temperature (T-T)-10 - 70 °C
USB poweredY
VLAN taggingY
Wake-on-LAN readyY
Weight100 g
Width55 mm
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
Product colourBlack

US1GA30SXSC.pdf

StarTech.com USB 3.0 to Fiber Optic Converter - 1000Base-SX SC Data Sheet

Download (135.79k)
