Auto MDIX IEEE | Yes |
Cabling technology | 10/100/1000BaseT(X) |
Certification | CE, FCC |
Chipset | Intel - I350-AM2 |
Colour of product | Aluminium,Black |
Compatibility | Server |
Connectivity technology | Wired |
Data transfer rate (max) | 2000 Mbit/s |
Depth | 67 mm |
Drivers included | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN (RJ-45) ports quantity | 2 |
Ethernet LAN connection | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN data transfer rates | 10, 100, 1000 Mbit/s |
Full duplex | Yes |
Height | 121 mm |
Host interface | PCI-E |
Interface | Ethernet |
Internal | Yes |
Jumbo frames support | Yes |
LAN controller | Intel I350AM2 |
LED indicators | Activity,Link |
Link/Act LED | Yes |
Linux operating systems supported | Yes |
Manual | Yes |
Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u |
Operating relative humidity (H-H) | 5 - 85 % |
Operating relative humidity range | 5 - 85% |
Operating temperature (T-T) | 0 - 50 °C |
Operating temperature range (T-T) | 0 - 50 °C |
Package depth | 167 mm |
Package height | 28 mm |
Package weight | 166 g |
Package width | 140 mm |
PCI version | 2.1 |
Power LED | Yes |
RoHS compliance | Yes |
Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012 |
Storage temperature (T-T) | -20 - 60 °C |
Storage temperature range (T-T) | -20 - 60 °C |
VLAN tagging | Yes |
Wake-on-LAN ready | Yes |
Weight | 80 g |
Width | 19 mm |
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
Low-profile bracket | Yes |
Jumbo frames | 9000 |

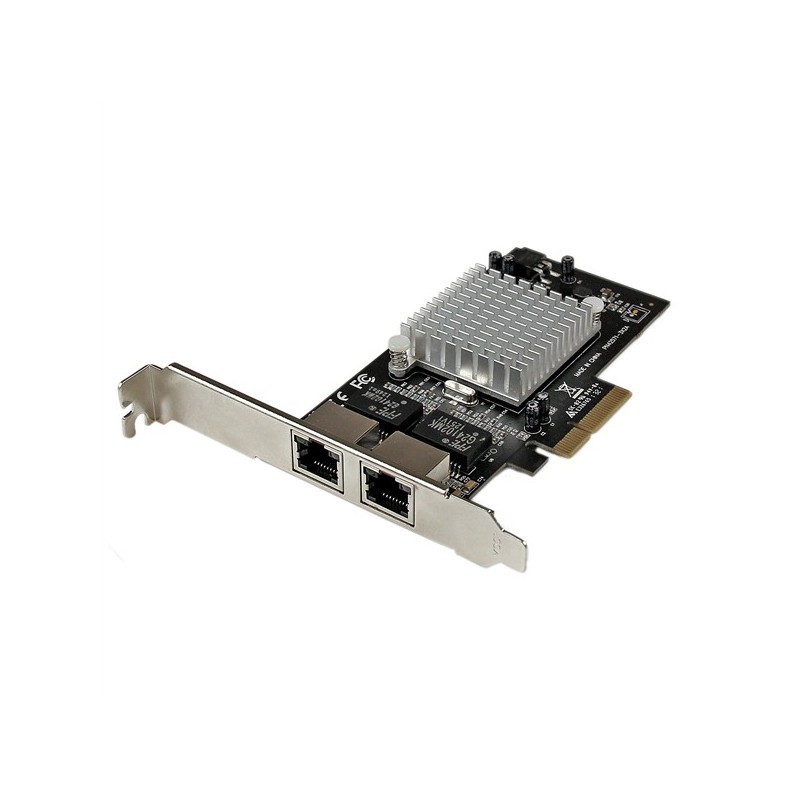

StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter - 2 Port Network Card - Intel i350 NIC - GbE Network Card
ST2000SPEXI
In Stock
