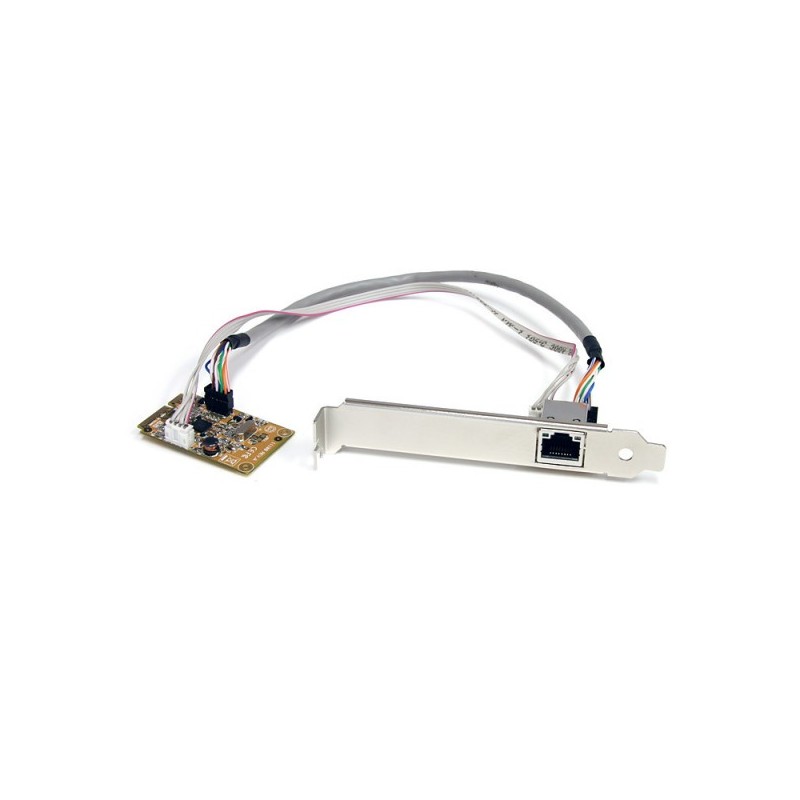

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.



Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.



Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.



Backed by a StarTech.com 2-year warranty and free lifetime technical support.



The StarTech.com Advantage

- Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems

- Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage

- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Auto MDIX IEEEYes
Bundled softwareWindows Server 2003(32/64-bit), Server 2008 R2
CertificationCE, FCC
ChipsetRealtek - RTL8111E
Connectivity technologyWired
Data transfer rate (max)1000 Mbit/s
Depth51 mm
Drivers includedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN (RJ-45) ports quantity1
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes
Full duplexYes
Height8 mm
Host interfaceMini PCI Express
InterfaceEthernet
InternalYes
Jumbo frames supportYes
LED indicatorsActivity,Link
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.4 Tiger,Mac OS X 10.5 Leopard
ManualYes
Mean time between failures (MTBF)482765 h
Networking standardsIEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Number of products included1 pc(s)
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)0 - 55 °C
Operating temperature range (T-T)0 - 55 °C
Package depth142 mm
Package height31 mm
Package weight150 g
Package width172 mm
RoHS complianceYes
Server operating systems supportedWindows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012
Source data-sheetIcecat.biz
Storage temperature (T-T)-20 - 85 °C
Storage temperature range (T-T)-20 - 85 °C
Supported data transfer rates10/100/1000 Mbit/s
VLAN taggingYes
Wake-on-LAN readyYes
Weight6 g
Width30 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Window
Low-profile bracketYes
Jumbo frames9000
