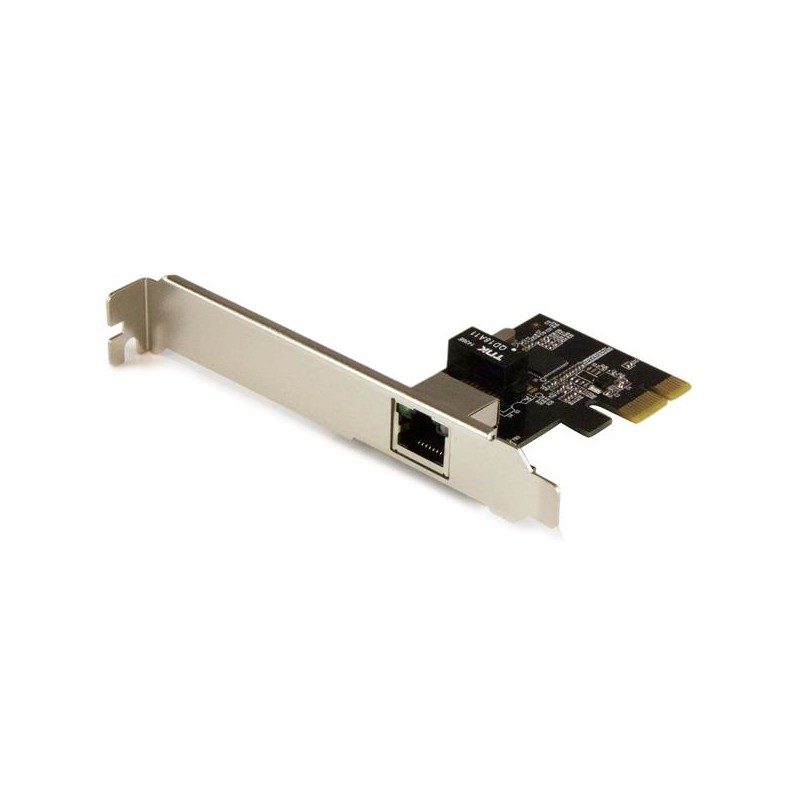

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
  • StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
  • StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
  • StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
  • StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
  • StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
  • StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.



The performance and reliability you demand in network connectivity

This Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.



The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.



A versatile and cost-effective solution

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.



Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Auto MDIX IEEEYes
Auto-negotiationYes
Cabling technology10/100/1000BaseT(X)
CertificationCE, FCC
ChipsetIntel I210-AT
Colour of productBlack,Metallic
Connectivity technologyWired
Data transfer rate (max)2000 Mbit/s
Depth120 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexYes
Height18 mm
Host interfacePCI-E
InterfaceEthernet
InternalYes
Jumbo frames supportYes
LED indicatorsActivity
Linux operating systems supportedYes
ManualYes
Mounting brackets includedYes
Networking standardsIEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 50 °C
Package depth170 mm
Package height30 mm
Package weight104 g
Package width142 mm
RoHS complianceYes
Server operating systems supportedWindows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012
Storage temperature (T-T)-20 - 60 °C
VLAN taggingYes
Wake-on-LAN readyYes
Weight35 g
Width66 mm
Windows operating systems supportedWindows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Window

ST1000SPEXI.pdf

StarTech.com 1 Port PCI Express Gigabit Ethernet Network Card - Intel I210 NIC Data Sheet

Download (206k)

You might also like

  • UK Socket / UK Plug Rack PDU
    UK Socket / UK Plug Rack PDU
  • Cat6 RJ45 Patch Cables
    Cat6 RJ45 Patch Cables

Similar products

  • StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
    StarTech.com 1 Port PCI Express PCIe...
  • StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE
    StarTech.com Dual Port PCI Express Gigabit...
  • StarTech.com USB 3.0 to Gigabit Ethernet NIC Network Adapter – 10/100/1000 Mbps
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - Black
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R USB WiFi Adapter - White
    StarTech.com USB 150Mbps Mini Wireless N...

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset

ST1000SPEXI

In Stock

£41.46
£34.55 Ex VAT.
