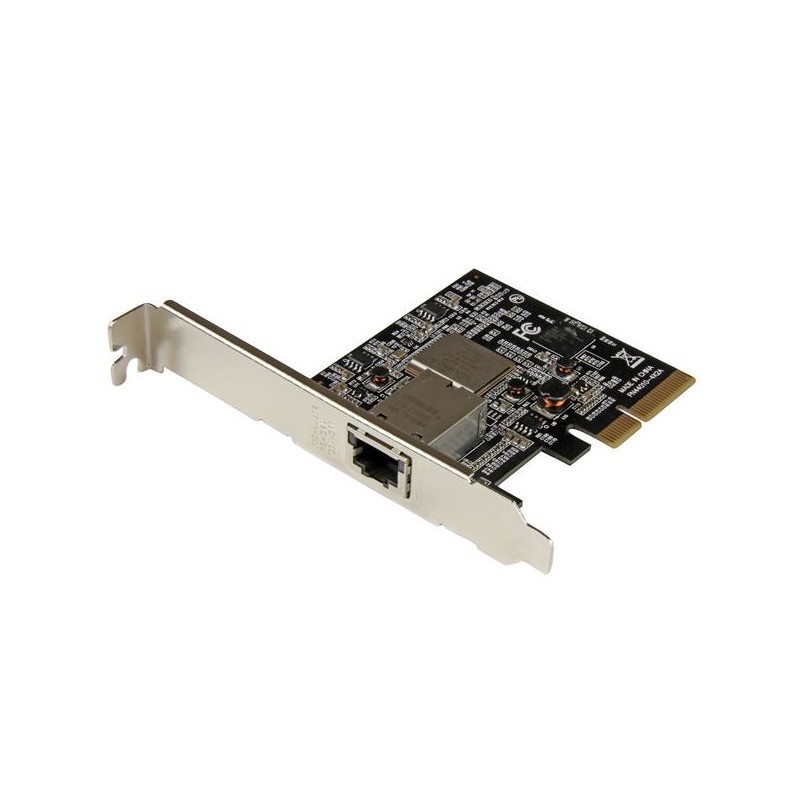

StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card
  • StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card
  • StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card
  • StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card
  • StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card
  • StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card
  • StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card
  • StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card
This 5-speed network adapter card offers versatile and cost-efficient network connectivity. It lets you add an Ethernet port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G 1G and 100Mbps.



Cost-effective, multimode network connectivity

Designed for low-power, single-port network applications, the PCIe NIC offers a cost-effective and versatile networking solution by providing additional bandwidth to meet your network needs, without having to overhaul your infrastructure wiring. Fully compliant with 10GBase-T and NBASE-T™ specifications, the network card lets you add an Ethernet port to your server or high-powered workstation through a PCI Express x4 (or higher) slot. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)



Advanced technology for optimal performance

The network controller card features advanced NBASE-T technology, supporting the latest multi-gigabit, including new Cisco® campus switches and Aruba Networks® access points. The card enables you to connect to NBASE-T based equipment at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a.



NBASE-T technology accelerates the speed of twisted pair Cat5e copper cabling over a distance of up to 100 meters. The Ethernet network card also supports the more common 10G over copper, and 1G network connections using existing Cat 6/Cat5e or better cabling.



The 5-speed Ethernet network card is a powerful combination of the Tehuti™ TN4010 controller and the Aquantia™ AQR105 transceiver, providing low-power and high-performance NBASE-T solutions. The Tehuti 10GbE controller supports autonegotiation, which ensures the optimal speed over Cat5e/Cat6 is selected: 10GbE, 5GbE, 2.5GbE, GbE or 100Mbps (Fast Ethernet). The network card also offers compatibility with Microsoft Hyper-V® virtualization software and iSCSI support to combine LAN and SAN functions.



Operating efficiency and flexible use

The Tehuti TN4010 chipset, compliant with 802.3az Energy Efficient Ethernet, ensures peak operating efficiency with reduced power consumption versus the popular Intel® X540 chipset. The decreased power consumption helps to minimize heat generated by the card, to avoid increasing the operating temperature within your server case.



The network card also supports advanced features including 16K Jumbo Frames and 802.1q VLAN tagging. For additional versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.



The ST10GSPEXNB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Auto MDIX IEEEYes
CertificationCE, FCC
ChipsetTehuti - TN4010, Aquantia - AQR105
Colour of productBlack,Stainless steel
Connectivity technologyWired
Copper ethernet cabling technology10GBASE-T,100BASE-T,1000BASE-T
Data transfer rate (max)10000 Mbit/s
Depth83 mm
Drivers includedYes
Ethernet interface type10 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Full duplexYes
Height21 mm
Host interfacePCI-E
InterfaceEthernet
InternalYes
iSCSI supportYes
Jumbo frames supportYes
LED indicatorsActivity,Link,Speed
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan
ManualYes
Networking standardsIEEE 802.1Q,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3an,IEEE 802.3u
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 50 °C
Package depth142 mm
Package height30 mm
Package weight151 g
Package width170 mm
PCI version2.0
RoHS complianceYes
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Storage temperature (T-T)-20 - 60 °C
VLAN taggingYes
Weight100 g
Wi-FiNo
Width120 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
Low-profile bracketYes
Jumbo frames16000

ST10GSPEXNB.pdf

StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card Data Sheet

Download (215.41k)

Similar products

  • StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
    StarTech.com 1 Port PCI Express PCIe...
  • StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE
    StarTech.com Dual Port PCI Express Gigabit...
  • StarTech.com USB 3.0 to Gigabit Ethernet NIC Network Adapter – 10/100/1000 Mbps
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - Black
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R USB WiFi Adapter - White
    StarTech.com USB 150Mbps Mini Wireless N...

StarTech.com 1-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card

StarTech.com 1 Port PCI Express 10GBase-T / NBASE-T Ethernet Network Card - 5-Speed Network Support: 10G/5G/2.5G/1G/100Mbps - PCIe 2.0 x4

ST10GSPEXNB

Out of Stock

£218.52
£182.10 Ex VAT.
