Certification | CE, FCC |
Chipset | Intel - XL710-BM2 |
Connectivity technology | Wired |
Data transfer rate (max) | 40000 Mbit/s |
Depth | 181 mm |
Ethernet LAN | N |
Fiber ethernet cabling technology | 40GBASE-LR4,40GBASE-SR4 |
Fiber optic connector | QSFP+ |
Fiber ports quantity | 2 |
Flow control support | Y |
Full duplex | Y |
Height | 21 mm |
Host interface | PCI-E |
Interface | fiber |
Internal | Y |
Jumbo frames support | Y |
LED indicators | Activity,Link |
Linux operating systems supported | Y |
Networking standards | IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3ba,IEEE 802.3x |
Operating relative humidity (H-H) | 5 - 95 % |
Operating temperature (T-T) | 0 - 57 °C |
Package depth | 181 mm |
Package height | 21 mm |
Package weight | 260 g |
Package width | 121 mm |
PCI version | 3.0 |
Quick start guide | Y |
RoHS compliance | Y |
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 x64 |
Storage temperature (T-T) | -20 - 85 °C |
VLAN tagging | Y |
Weight | 260 g |
Width | 121 mm |
Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic |
Low-profile bracket | Y |
Jumbo frames | 9000 |
Product colour | Black |

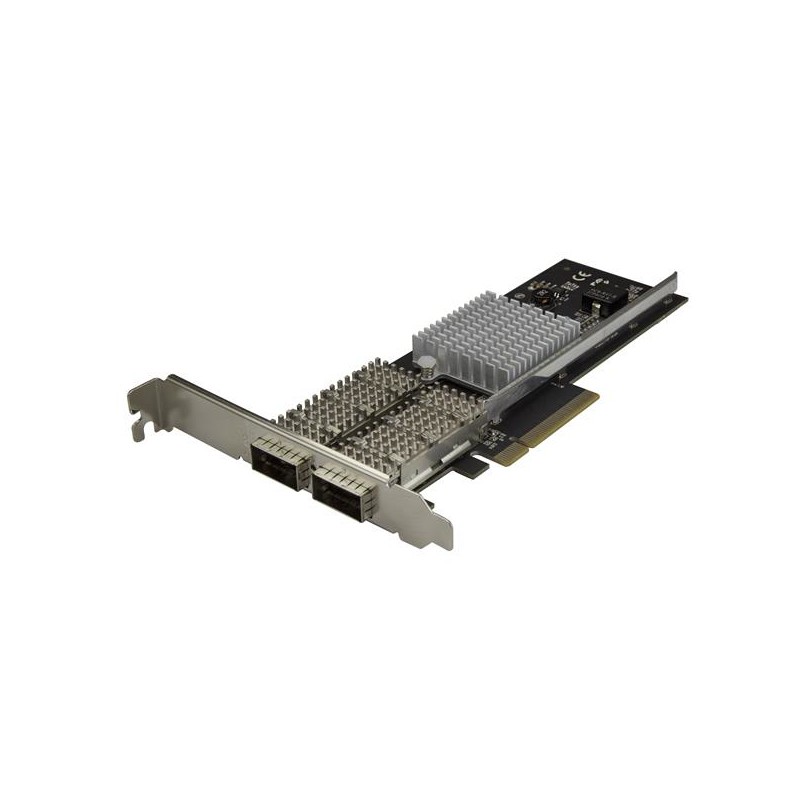

StarTech.com Dual-Port QSFP+ Server NIC Card - PCI Express - Intel Chip Data Sheet
Download (163.03k)StarTech.com Dual Port QSFP+ Server NIC Card - Intel XL710 Chip - 40gb NIC - PCIe Network Card - Network Interface Card - Server NIC
PEX40GQSFDPI
