Auto MDIX IEEE | Yes |
Certification | CE, FCC |
Chipset | Realtek - RTL8110SC |
Compatibility | PC |
Compatible operating systems | Windows 98SE/ ME/ NT/ 2000/ XP(32/64 bit)/ Server 2003(32/64 bit)/ Vista(32/64 bit)/ 7(32/64 bit)/ Server 2008 R2, Netware Server 5.x, Netware ODI f/ DOS, Linux & Unix |
Compliance industry standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11u, PCI 2.1, PCI 2.2 |
Connectivity technology | Wired |
Data transfer rate (max) | 1000 Mbit/s |
Depth | 123 mm |
Drivers included | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN connection | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Full duplex | Yes |
Height | 63 mm |
Host interface | PCI |
I/O ports | 1 - RJ45 F |
Interface | Ethernet |
Internal | Yes |
LED indicators | 10/100/1000 Mbits/sec Link/Activity |
Linux operating systems supported | Yes |
Mac operating systems supported | Mac OS X 10.4 Tiger |
Manual | Yes |
Mean time between failures (MTBF) | 36000 h |
Networking standards | IEEE 802.11u,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
Operating relative humidity (H-H) | 10 - 95 % |
Operating temperature (T-T) | 0 - 55 °C |
Operating temperature range (T-T) | 0 - 55 °C |
Package depth | 175 mm |
Package height | 30 mm |
Package weight | 100 g |
Package width | 140 mm |
PCI version | 2.2 |
Ports quantity | 1 |
RoHS compliance | Yes |
Server operating systems supported | Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012 |
Source data-sheet | Icecat.biz |
Supported data transfer rates | 10/100/1000 Mbit/s |
Supported network protocols | CSMA/CD |
VLAN tagging | Yes |
Wake-on-LAN ready | Yes |
Weight | 54 g |
Width | 20 mm |
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Window |
Low-profile bracket | Yes |

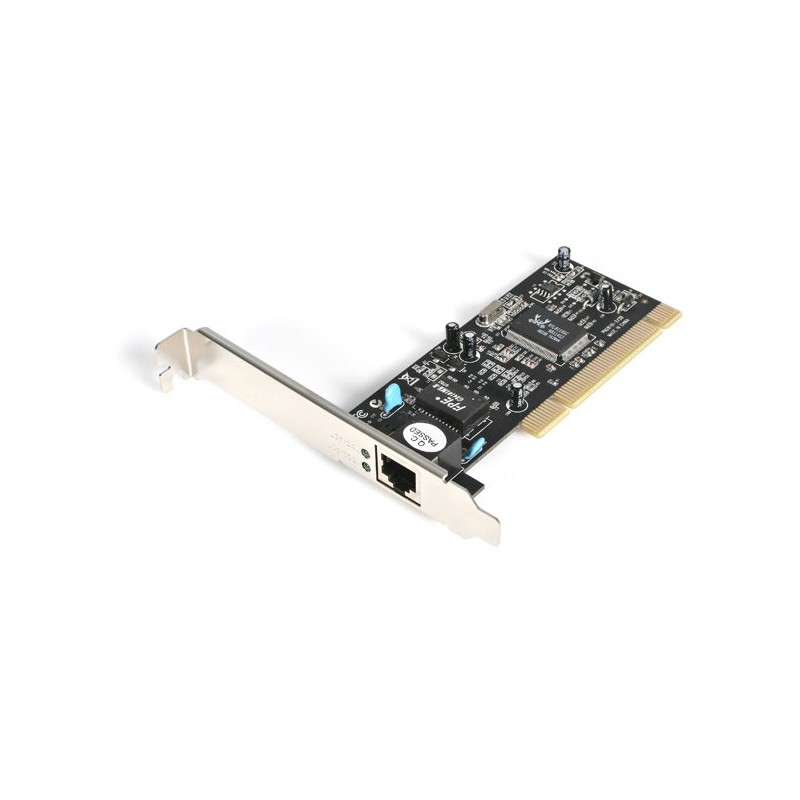

StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
ST1000BT32
Out of Stock
