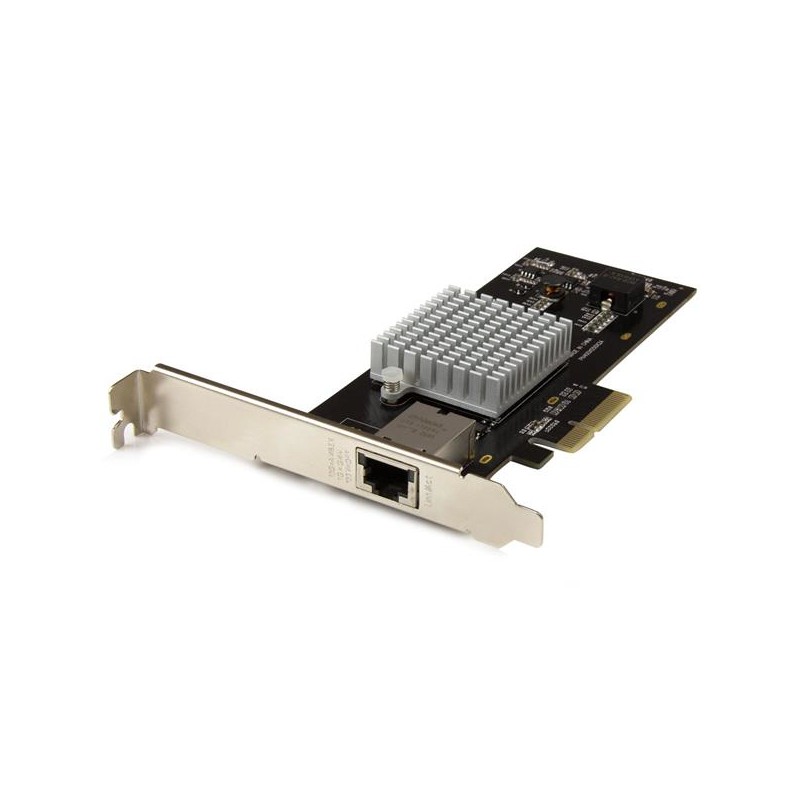

StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
  • StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
  • StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
  • StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
  • StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
  • StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
  • StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
  • StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
Here’s a powerful and cost-effective solution for upgrading your server or workstation to 10 Gigabit Ethernet networking over copper. This PCI Express 10G NIC lets you add an Ethernet port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G 1G and 100Mbps.



Reliable, high-performance connectivity

This 10G network card utilizes the Intel® X550-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3u/ab/an standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up to 10Gbps in each direction (20Gbps total). It connects easily through a single, four-lane (x4 or higher) PCI Express slot.



The Intel X550-AT chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support. The Intel chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation. It also lets you take advantage of advanced features such as VLAN tagging, up to 15K jumbo frame support and Auto MDIX.



Cost-effective and versatile multimode connectivity

This five-speed NIC provides a cost-effective and versatile networking solution, by giving you the additional bandwidth your network needs without having to overhaul your infrastructure wiring. It lets you add an Ethernet port which can be accessed at multiple speeds 10G, 5G, 2.5G 1G and 100Mbps. Compatible with a broad range of operating systems, the 10G NIC is fully compliant with 10GBase-T and NBASE-T™ specifications. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)



The PCIe 10G network card features advanced NBASE-T technology, supporting the latest multigigabit equipment, including new Cisco® campus switches and Aruba Networks® access points. The card enables you to connect to NBASE-T based equipment (with Linux® only) at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a. The Ethernet network card also supports the more common 10G over copper, and 1G network connections using existing Cat 6/Cat5e or better cabling.



Easy installation

With its dual-profile design, the network card is easy to install into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.



The ST10000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Auto MDIX IEEEYes
CertificationCE, FCC
ChipsetIntel X550AT
Connectivity technologyWired
Data transfer rate (max)20000 Mbit/s
Depth152.5 mm
Ethernet interface type10 Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Flow control supportYes
Full duplexYes
Height121 mm
Host interfacePCI-E
InterfaceEthernet
InternalYes
Jumbo frames supportYes
LED indicatorsActivity,Link
Linux operating systems supportedYes
Networking standardsIEEE 802.1Q,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 50 °C
Package depth170 mm
Package height30 mm
Package weight200 g
Package width142 mm
PCI Card form factorfull-height (low-profile)
PCI version2.0
Quick start guideYes
RoHS complianceYes
Server operating systems supportedWindows Server 2008 R2 x64,Windows Server 2012 R2 x64,Windows Server 2012 x64
Storage temperature (T-T)-20 - 60 °C
VLAN taggingYes
Weight96 g
Width68.5 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
Low-profile bracketYes
Jumbo frames9000

ST10000SPEXI.pdf

StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip Data Sheet

Download (145.48k)

Similar products

  • StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
    StarTech.com 1 Port PCI Express PCIe...
  • StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE
    StarTech.com Dual Port PCI Express Gigabit...
  • StarTech.com USB 3.0 to Gigabit Ethernet NIC Network Adapter – 10/100/1000 Mbps
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - Black
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R USB WiFi Adapter - White
    StarTech.com USB 150Mbps Mini Wireless N...

StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip

StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - 10GbE NIC with Intel X550-AT Chip - 10GBase-T / NBASE-T Compliant

ST10000SPEXI

In Stock

£363.41
£302.84 Ex VAT.
