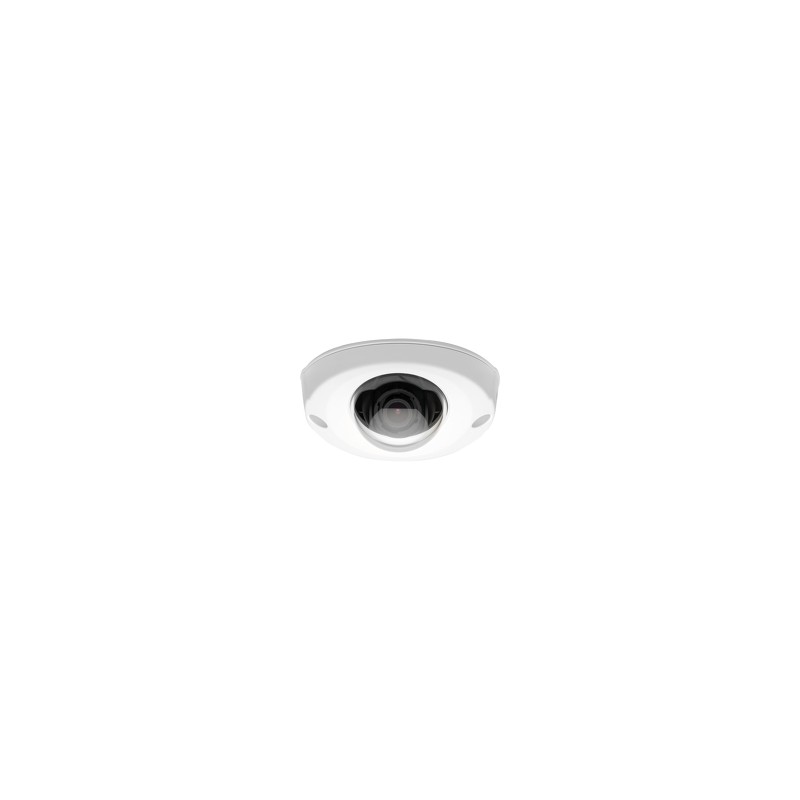

AXIS P3905-R Mk II Network Camera is a high-performance network camera specifically designed for mobile video surveillance on board vehicles and rolling stock like buses, trains, subway cars, and emergency vehicles. The camera features protection against dust and water, and it can withstand tough conditions such as vibrations, shocks, bumps, and temperature fluctuations. But best of all, thanks to Axis technology for challenging lighting and Axis Zipstream technology, AXIS P3905-R Mk II captures full forensic detail while minimizing bandwidth and storage requirements.



Excellent onboard image quality

AXIS P3905-R Mk II is specially adapted to deliver sharp HDTV 1080p image quality onboard moving vehicles with varied and fast-shifting light levels. The camera features WDR – Forensic Capture for clarity when there are both dark and light areas in the scene, and Axis Lightfinder technology for color images even in near darkness. Traffic Light mode helps to better delineate the color of traffic lights in very dark scenes.



Cut the storage. Not the quality.

AXIS P3905-R Mk II features Axis Zipstream technology, which reduces storage and bandwidth with up to 50%, while capturing important details in full image quality. The result is high-forensic usability, and significant savings, as well as a camera that’s perfect for onboard conditions.



Optimized for transportation

AXIS P3905-R Mk II complies with a long list of transportation-industry regulations including fire-safety, and EN50155:2017 Class OT2/ST2 (EN50155:2007 Class TX) standards. Its rugged design and ability to withstand a wide range of temperatures make the camera appropriate for tough onboard conditions. And with optional outdoor housing, M12 or RJ45 connectors available and a compact and discreet design, it’s flexible enough to be installed inside or out and in many different configurations.



Quick and reliable installation

The camera is designed for quick and reliable installation. A lens tool that makes it easy to get a level image with the field of view you want is included. And it’s easy to upgrade from earlier camera versions from the series.



- Compact, rugged design

- Complies with EN50155

- WDR and Lightfinder

- Zipstream

- Traffic Light mode
BluetoothN
Built-in hard driveN
Cabling technology10/100Base-T(X)
Camera shutter speed1/32500 - 2 s
Card reader integratedY
CertificationEN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 5 A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 05 (E), EN 50498, IEC/EN/UL 62368-1, EN 45545, UN ECE R118, NFPA 130d; IEC/EN 60529
Colour of productWhite
Compatible memory cardsMicroSD (TransFlash),MicroSDHC,MicroSDXC
Connectivity technologyWired
Diameter109 mm
Ethernet interface typeFast Ethernet
Ethernet LANY
Fixed focal length3.6 mm
Flash memory256 MB
Form factordome
Frame rate30 fps
Full HDY
Height49 mm
Housing materialAluminium,Polycarbonate
InterfaceRJ-45
Internal memory512 MB
International Protection (IP) codeIP67
IP address filteringY
Languages supportCHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
Maximum resolution1920 x 1080 pixels
Minimum illumination0.06 lx
Mounting typeCeiling
Networking standardsIEEE 802.3af,IEEE 802.3at
Operating relative humidity (H-H)10 - 100 %
Operating temperature (T-T)-40 - 60 °C
Optical sensor size1/2.9 "
Pan range-30 - 30 °
Password protectionY
Placement supportedOutdoor
Power consumption (max)3.6 W
Power consumption (typical)2.9 W
Power over Ethernet (PoE)Yes
Power source typePoE
Progressive scanY
PTZ control (Pan/Tilt/Zoom)Y
Security algorithmsHTTPS
Sensor typeCMOS
Storage temperature (T-T)-40 - 65 °C
Supported graphics resolutions160 x 90,1920 x 1080 (HD 1080)
Supported network protocolsIPv4/v6, HTTP, HTTPS , SSL/TLS, QoS l3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Supported video modes1080p
TypeIP security camera
User guideY
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Video motion detectionY
Viewing angle, horizontal87 °
Viewing angle, vertical49 °
Web-based managementY
Weight241 g
Wi-FiNo
Wide Dynamic Range (WDR)Y
Image quality adjustmentBrightness,Contrast,Sharpness
Maximum aperture number2
Number of cameras1
Privacy maskingY
Number of languages11
Angle of rotation175 °
IK codeIK08
Video streamingY
Tilt angle range15 - 90 °
Bit rate controlVariable Bit Rate (VBR)

01072-001.pdf

Axis P3905-R Mk II Data Sheet

Download (465.06k)

Similar products

  • Axis F1005-E
    Axis F1005-E
  • Axis M1124-E
    Axis M1124-E
  • Axis M1125-E
    Axis M1125-E
  • Axis F1004
    Axis F1004
  • Axis P1435-LE
    Axis P1435-LE

Axis P3905-R Mk II

1/2.9” CMOS, 3.6 mm, F2.0, 1080p 25/30 fps, H.264, PTZ, RJ-45, PoE, microSD, 49x109 mm, 241 g

01072-001

Out of Stock

£495.16
£412.63 Ex VAT.
