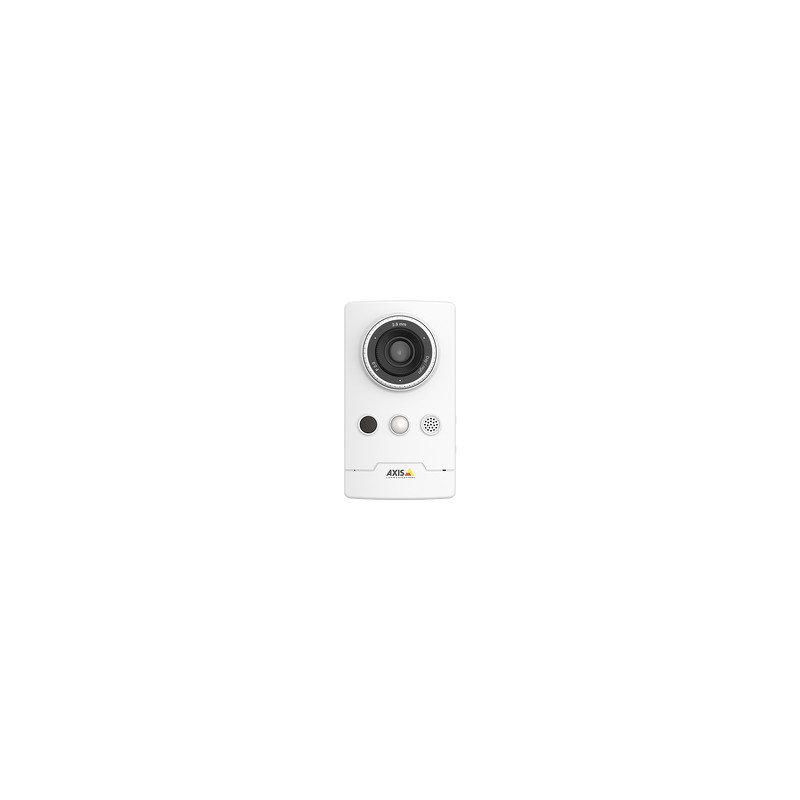

Axis COMPANION CUBE LW
  • Axis COMPANION CUBE LW
  • Axis COMPANION CUBE LW
- Indoor full HD IR wireless network camera

- Wireless communication with support for a/b/g/n

- High video quality in HDTV 1080p and 2 MP resolution

- Built-in IR illumination for surveillance in total darkness

- WDR to handle scenes with complex light conditions

- Built-in microphone, mini-speaker and PIR motion sensor

- Bracket for wall and corner mount

- AXIS Companion Card 63 GB included

- 3 year warranty



Easiest set-up for 1-2 camera solution



AXIS Companion Cube LW together with AXIS Companion Card 64 GB makes a self-contained recording solution. Through wireless communication with AXIS Companion software and apps, this is the easiest set up for a smaller surveillance solution.



Please note!

AXIS Companion IP cameras are supported only by AXIS Companion video management software and mobile apps for iOS and Android devices.



Smart design for indoor surveillance



AXIS Companion Cube LW features high quality video in HDTV 1080p/2 MP resolution and WDR. It comes with IR illumination, day/night functionality, PIR motion sensor, microphone and mini-speaker. The camera connects over wireless LAN (IEEE 802.11a/b/g/n) or wired Ethernet. It supports Wi-Fi Protected Setup™ with push button configuration. AXIS Companion Cube LW is optimized for edge storage and with AXIS Companion Card 64 GB included it is a self-contained recording solution. Axis Zipstream technology allows even high quality video to be recorded effectively. AXIS Companion Cube LW is supported only by AXIS Companion video management software and mobile app.
Antenna typeinternal
Antennas quantity1
Audio formats supportedAAC
Camera shutter speed1/25000 - 1/5 s
CertificationEN 55032 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KN24, KN-35\n\nEN 300328, EN 301489-1, EN 301489-17, EN 301893,\nFCC Part 15 Su
Colour of productWhite
Compatible memory cardsmicroSD (TransFlash)
Connectivity technologyWireless
Depth37 mm
Fixed focal length2.8 mm
Flash memory256 MB
Form factorCube
Frame rate30 fps
Frequency band2.4, 5 GHz
Height106 mm
InterfaceWLAN
Languages supportCHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,POR,RUS
LED typeIR
Maximum resolution1920 x 1080 pixels
Megapixel2 MP
Minimum illumination0.05 lx
Mounting typeWall
Night vision distance10 m
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)0 - 40 °C
Optical sensor size1/3 "
Placement supportedIndoor
Power consumption (max)5 W
Power consumption (typical)2.7 W
Rotation180 °
Security algorithmsWPA,WPA2,WPA2-PSK
Sensor typeCMOS
Storage temperature (T-T)-40 - 65 °C
Supported graphics resolutions320 x 240,1920 x 1080 (HD 1080)
Supported video modes240p,1080p
TypeIP
Video compression formatsH.264,M-JPEG
Video formats supportedH.264,M-JPEG
Video resolutions320 x 240,1920 x 1080 pixels
Viewing angle, horizontal110 °
Viewing angle, vertical61 °
Weight128 g
Wi-Fi standardsIEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Width60 mm
Image quality adjustmentBrightness,Contrast,Sharpness
Number of cameras1
Lens mount interfaceM12

0892-002.pdf

Axis COMPANION CUBE LW Data Sheet

Download (676.63k)

Similar products

  • Axis F1005-E
    Axis F1005-E
  • Axis M1124-E
    Axis M1124-E
  • Axis M1125-E
    Axis M1125-E
  • Axis F1004
    Axis F1004
  • Axis P1435-LE
    Axis P1435-LE

Axis COMPANION CUBE LW

1/3” RGB CMOS, 2.8 mm, F2.0, 110 deg, 61 deg, M12 mount, IR, 0.25 lux 50 IRE F2.0, 0.05 lux 40 IRE F2.0, 1/28000s - 1/5 s 50 Hz, 1/32500s - 1/5s 60 Hz, 1920 x 1080, 320 x 240, AAC-LC 8/16 kHz, 82 dB-SPL, 802.11 a/b/g/n @ 2.4/5 GHz, 512 MB RAM, 256 MB, 10 m
