Active tampering alarm | Y |
Alarm input/output | Y |
Audio detection | Y |
Built-in microphone | Y |
Bundled software | Windows decoder 1 - user license |
Cabling technology | 10/100Base-T(X) |
Camera shutter speed | 1/66500 - 1 s |
Card reader integrated | Y |
Certification | EN 55032 Class A, EN 61000-6-1, EN61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35\nEC/EN/UL 62368-1 |
Colour of product | White |
Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
Connectivity technology | Wired |
Day/night mode | Y |
DC output voltage | 12 |
Diameter | 148 mm |
Ethernet LAN (RJ-45) ports | 1 |
Flash memory | 256 MB |
Focal length range (f-f) | 3 - 10 mm |
Form factor | dome |
Frame rate | 30 fps |
Height | 99 mm |
Housing material | Aluminium |
HTTPS encryption | Y |
Internal memory | 512 MB |
IP address filtering | Y |
Iris | Y |
Languages support | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS |
Maximum resolution | 1920 x 1080 pixels |
Microphone in | Y |
Minimum illumination | 0.03 lx |
Mounting type | Ceiling |
Networking standards | IEEE 802.3af |
Operating relative humidity (H-H) | 10 - 85 % |
Operating temperature (T-T) | 0 - 50 °C |
Optical sensor size | 1/3 " |
Pan range | -180 - 180 ° |
Placement supported | Indoor |
Power consumption | 50 mA |
Power over Ethernet (PoE) | Yes |
Power source type | PoE |
Progressive scan | Y |
PTZ control (Pan/Tilt/Zoom) | Y |
Quick installation guide | Y |
Sensor type | CMOS |
Storage temperature (T-T) | -40 - 65 °C |
Supported network protocols | Pv4/v6, HTTP , HTTPS a , SSL/TLS a , QoS Layer 3 DiffServ , FTP , SFTP , CIFS/SMB, SMTP , Bonjour , UPnP ® , SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH |
Type | IP security camera |
Video compression formats | H.264,M-JPEG,MPEG |
Video motion detection | Y |
Viewing angle, horizontal | 90 ° |
Viewing angle, vertical | 50 ° |
Weight | 700 g |
White balance | Yes |
Wide Dynamic Range (WDR) | Y |
Image quality adjustment | Brightness,Contrast,Sharpness |
Power consumption (Power over Ethernet (PoE)) | 3.9 W |
Maximum aperture number | 1.4 |
Number of languages | 11 |
Angle of rotation | 90 ° |
PTZ modes | Digital PTZ,Preset point |
IK code | IK10 |
Video streaming | Y |
Tilt angle range | -20 - 80 ° |
Streaming method | Multicast |

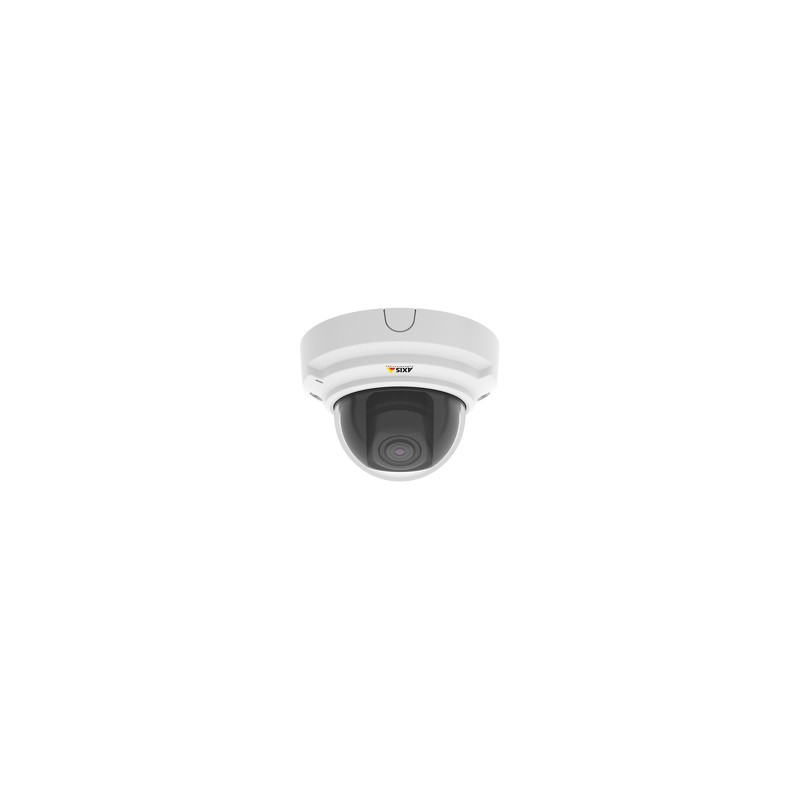

Dome camera, Progressive scan RGB CMOS 1/3”, 1920 x 1080, 3 –10 mm, F1.4, 1/66500 s to 1 s, Pan ±180°, Tilt - 20° to +80°, Rotation ±90°
01060-001
