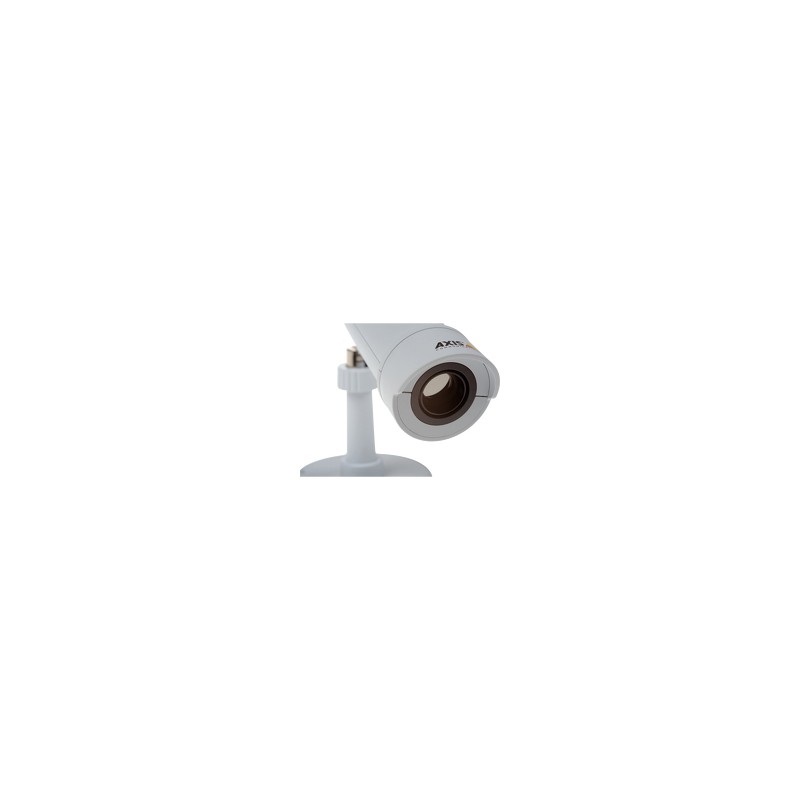

Axis P1280-E 4MM 8.3 FPS
  • Axis P1280-E 4MM 8.3 FPS
  • Axis P1280-E 4MM 8.3 FPS
  • Axis P1280-E 4MM 8.3 FPS
Thermal detection within reach



AXIS P1280-E delivers all the benefits of thermal detection at a price that’s within reach. Thanks to built-in analytics – or advanced analytics from our partners or Axis – it reliably detects people, vehicles and objects regardless of light conditions or attempts at camouflage. It can be used as a cost-effective detector with visual confirmation for safety of both people and property in numerous environments. It also helps to decrease false alarms.



Where privacy is paramount



AXIS P1280-E can be used as a sensor to avoid compromising privacy, for example schools and care homes – thermal imaging detects incidents without revealing personal details of the people in the image. Together with analytics the thermal camera can trigger alerts or alarms in response to patient or resident falls, allowing staff to take immediate action. In addition, AXIS P1280-E can be used inside and outside buildings to identify unauthorized access before, during or after certain hours.



Flexible and discreet



AXIS P1280-E is small in size and extremely discreet. Mount it behind surfaces, in recesses, on walls or inside a bullet-shaped accessory – whichever best suits your requirements. There are accessories available for every kind of installation.



- Reliable and budget-friendly detection

- Thermal technology for low rate of false alarm

- Functional and highly discreet design

- For indoors and outdoors
Cabling technology10/100Base-T(X)
Card reader integratedY
Colour of productWhite
Compatible memory cardsMicroSD (TransFlash),MicroSDHC,MicroSDXC
Connectivity technologyWired
Depth46 mm
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Fixed focal length4 mm
Flash memory256 MB
Form factorbullet
Frame rate8.3 fps
Height109 mm
Housing materialAluminium,Polycarbonate
HTTPS encryptionY
Internal memory512 MB
International Protection (IP) codeIP67
IP address filteringY
Maximum memory card size64 GB
Maximum resolution640 x 480 pixels
Mounting typePole clamp
Networking standardsIEEE 802.3af,IEEE 802.3at
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)-20 - 50 °C
Placement supportedIndoor & outdoor
Power consumption (max)4 W
Power consumption (typical)2.5 W
Power over Ethernet (PoE)Yes
Power source typePoE
Sensor typeMicrobolometer
Storage temperature (T-T)-40 - 65 °C
Supported network protocolsPv4/v6, HTTP , HTTPS a , SSL/TLS a , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP T M , SNMPv1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SFTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH
Video compression formatsH.264,M-JPEG,MPEG4
Viewing angle, horizontal35.4 °
Viewing angle, vertical28 °
Weight72 g
Width165 mm
Image quality adjustmentBrightness,Contrast,Sharpness
Maximum aperture number1.2
Number of cameras1
Video streamingY
Streaming methodMulticast

0940-001.pdf

Axis P1280-E 4MM 8.3 FPS Data Sheet

Download (604.12k)
