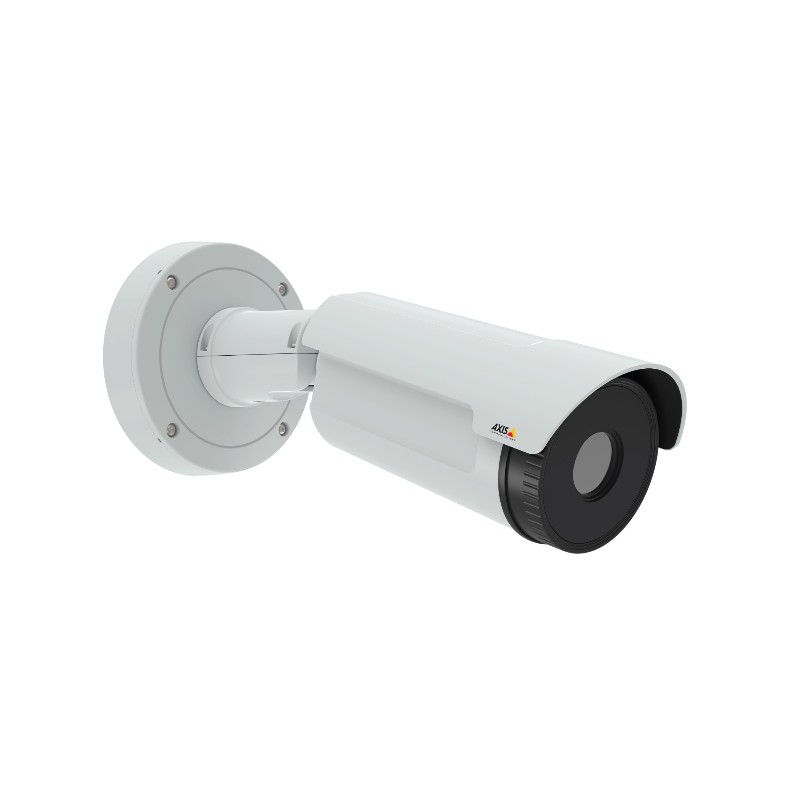

Axis Q1942-E 60MM
  • Axis Q1942-E 60MM
  • Axis Q1942-E 60MM
  • Axis Q1942-E 60MM
- VGA thermal imaging

- Bullet-style design

- Intelligent video

- Power over Ethernet

- Multiple lens options

- Shock detection

The thermal resolution of 640x480 and a range of lenses make it easy to detect and identify people, objects and incidents. Thanks to a new filter that removes the blur and ghost effects, the images are kept sharp in all conditions.



AXIS Q1932-E cameras offer an improved thermal imaging contrast, keeping the noise levels low at the same time as no details or temperature information are lost. The scene is easier to understand; surroundings are recognizable, and objects, accidents or people are identifiable.



Intelligent video applications

AXIS Q1932-E supports intelligent video applications, such as AXIS Cross Line Detection license and AXIS Video Motion Detection 2.1 which are included. The thermal camera can complement any IP surveillance system being the first to detect accidents and sending notification to another network camera.



Based on the alarm trigger, a PTZ network camera can be re-directed to the point of interest. With a resolution of 640x480 pixels, AXIS Q1932-E can optimize detection performance to meet most application requirements. Since thermal cameras are less sensitive to problems with light conditions and shadows, they can achieve higher accuracy and less false alarms than conventional cameras in most applications.



For demanding outdoor video surveillance

AXIS Q1932-E is a bullet-style outdoor-ready model that is designed to withstand harsh weather conditions. It comes with a built-in heater for the window. It's ideal for cost efficient 24/7 area or perimeter surveillance of all security applications such as roads, tunnels and airports. The camera is further protected with shock detection, a capability that sends an alarm to personnel during attempted vandalism.
AC input frequency50/60 Hz
AC input voltage24 V
Active tampering alarmY
Audio detectionY
Audio formats supportedG.711,PCM
Audio system full duplexY
Built-in microphoneY
Cable length5 m
Cables includedLAN (RJ-45)
Cabling technology10/100Base-T(X)
Card reader integratedY
Colour of productWhite
Compatible memory cardsMicroSD (TransFlash),MicroSDHC,MicroSDXC
Connectivity technologyWired
Diameter344 mm
Ethernet interface typeFast Ethernet
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Fixed focal length60 mm
Flash memory128 MB
Form factorbullet
Frame rate30 fps
Height145 mm
Housing materialAluminium,Metal
Internal memory256 MB
International Protection (IP) codeIP66
IP address filteringY
Languages supportCHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
Maximum resolution800 x 600 pixels
Mounting brackets includedY
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Operating temperature (T-T)-40 - 60 °C
Placement supportedOutdoor
Power consumption (max)10 W
Power over Ethernet (PoE)Yes
Protection featuresDust resistant,Water resistant
PTZ control (Pan/Tilt/Zoom)Y
Quick installation guideY
Security algorithmsHTTPS
Storage temperature (T-T)-40 - 70 °C
Supported network protocolsIPv4/v6, HTTP , HTTPS a , SSL/TLS a , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP T M , SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SFTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH
Temperature sensorY
TypeIP security camera
Video compression formatsH.264,MPEG4
Video motion detectionY
Viewing angle, horizontal10 °
Weight2200 g
Image quality adjustmentBrightness,Contrast
WeatherproofY
Maximum aperture number1.25
Number of cameras1
Privacy maskingY
Text caption overlayY
Flip & mirrorY

0922-001.pdf

Axis Q1942-E 60MM Data Sheet

Download (488.53k)

Similar products

  • Axis F1005-E
    Axis F1005-E
  • Axis M1124-E
    Axis M1124-E
  • Axis M1125-E
    Axis M1125-E
  • Axis F1004
    Axis F1004
  • Axis P1435-LE
    Axis P1435-LE

Axis Q1942-E 60MM

60 mm, F1.25, 10 Horizontal Viewing angle, H.264, 800 x 600, 30 fps, full duplex, IP 66, 256 MB RAM, 128 MB Flash, PoE, RJ45 10BASE - T/100BASE - TX, microSD/microSDHC/microSDXC, 2200g, white

0922-001

Stock Due 01-03-2025

£7,992.20
£6,660.17 Ex VAT.
