3G | No |
4G | No |
Bundled software | AXIS Camera Companion, AXIS Camera Station, Video\nmanagement software |
Cabling technology | 10/100Base-T(X) |
Camera shutter speed | 1/32500 - 1/5 s |
Certification | EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B,\nICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08 |
Colour of product | White |
Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
Connectivity technology | Wired |
Depth | 101 mm |
Ethernet interface type | Fast Ethernet |
Ethernet LAN (RJ-45) ports | 1 |
Fixed focal length | 2.8 mm |
Flash memory | 256 MB |
Focus adjustment | 2.0 |
Form factor | dome |
Height | 56 mm |
Housing material | Acrylonitrile butadiene styrene (ABS),Polycarbonate |
Interface | RJ-45 |
Internal memory | 512 MB |
International Protection (IP) code | IP42 |
Languages support | CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS |
Maximum resolution | 1280 x 720 pixels |
Megapixel | 1 MP |
Minimum illumination | 0.25 lx |
Mounting type | Ceiling/wall |
Networking standards | IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u |
Operating relative humidity (H-H) | 15 - 85 % |
Operating temperature (T-T) | 0 - 45 °C |
Optical sensor size | 1/3 " |
Pan range | -177 - 177 ° |
Placement supported | Indoor |
Power consumption (max) | 2.9 W |
Power consumption (typical) | 2.5 W |
Power over Ethernet (PoE) | Yes |
Protection features | Dust resistant,Vandal-proof |
Rotation | 352 ° |
Security algorithms | 802.1x RADIUS,HTTPS,SSH,SSL/TLS |
Sensor type | CMOS |
Storage relative humidity (H-H) | 15 - 85 % |
Storage temperature (T-T) | -40 - 70 °C |
Supported graphics resolutions | 320 x 240,1280 x 720 (HD 720) |
Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
Supported video modes | 720p |
Tilt angle | -76 - 76 ° |
Type | IP |
Video compression formats | H.264,M-JPEG,MPEG4 |
Viewing angle, horizontal | 82 ° |
Viewing angle, vertical | 44 ° |
Weight | 170 g |
White balance | Auto |
Width | 101 mm |
Number of cameras | 1 |
Alert notification type | |
Number of languages | 10 |

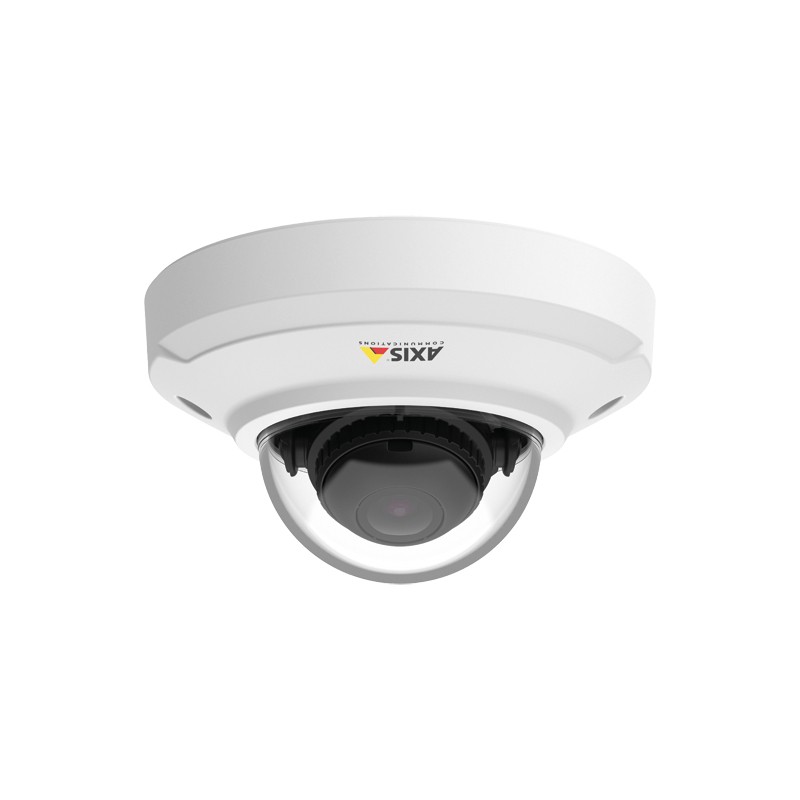

IP, 1/3” CMOS, 1280x720, HDTV 720p, WDR, 512 MB RAM, 256 MB Flash, Pan/Tilt/Rotation, 1 x Fast Ethernet RJ-45, microSD/microSDHC/microSDXC, PoE
0802-001
Out of Stock
