Audio formats supported | AAC,G.711,G.726,LPCM |
Audio system | 2-way |
Bluetooth | N |
Built-in hard drive | N |
Camera shutter speed | 1/55500 - 2 s |
Card reader integrated | Y |
Certification | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, 50121-4/IEC 62236, IEC/EN 60529 IP |
Colour of product | White |
Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
Connectivity technology | Wired |
Day/night mode | Y |
Depth | 155 mm |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 1 |
Fixed focal length | 1.2 mm |
Flash memory | 512 MB |
Focal length range (f-f) | 2.8 - 8.5 mm |
Form factor | bullet |
Frame rate | 30 fps |
Headphone outputs | 1 |
Height | 120 mm |
HTTPS encryption | Y |
Internal memory | 1024 MB |
International Protection (IP) code | IP66 |
IP address filtering | Y |
Maximum resolution | 3072 x 1728 pixels |
Microphone in | Y |
Minimum illumination | 0.03 lx |
Mounting brackets included | Y |
Mounting type | Ceiling/wall |
Night vision | N |
Operating relative humidity (H-H) | 10 - 100 % |
Operating temperature (T-T) | -40 - 55 °C |
Optical sensor size | 1/2.9 " |
Password protection type | User |
Placement supported | Outdoor |
Power over Ethernet (PoE) | Yes |
Power source type | PoE |
Progressive scan | Y |
PTZ control (Pan/Tilt/Zoom) | Y |
Quick installation guide | Y |
RS-422 ports | 1 |
RS-485 ports | 1 |
Sensor type | CMOS |
Storage temperature (T-T) | -40 - 65 °C |
Supported network protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
Terminal block port | Y |
Type | IP security camera |
Video compression formats | H.264 |
Viewing angle, horizontal | 72 ° |
Viewing angle, vertical | 40 ° |
Weight | 2200 g |
White balance | Yes |
Wi-Fi | No |
Width | 382 mm |
Image quality adjustment | Brightness,Contrast,Saturation,Sharpness |
Power consumption (Power over Ethernet (PoE)) | 9.2 W |
Number of cameras | 1 |
Text caption overlay | Y |
Removable IR-cut filter | Y |
Privacy protection | Y |
Lens mount interface | CS mount |
Flip & mirror | Y |
PTZ modes | Digital PTZ |
IK code | IK10 |

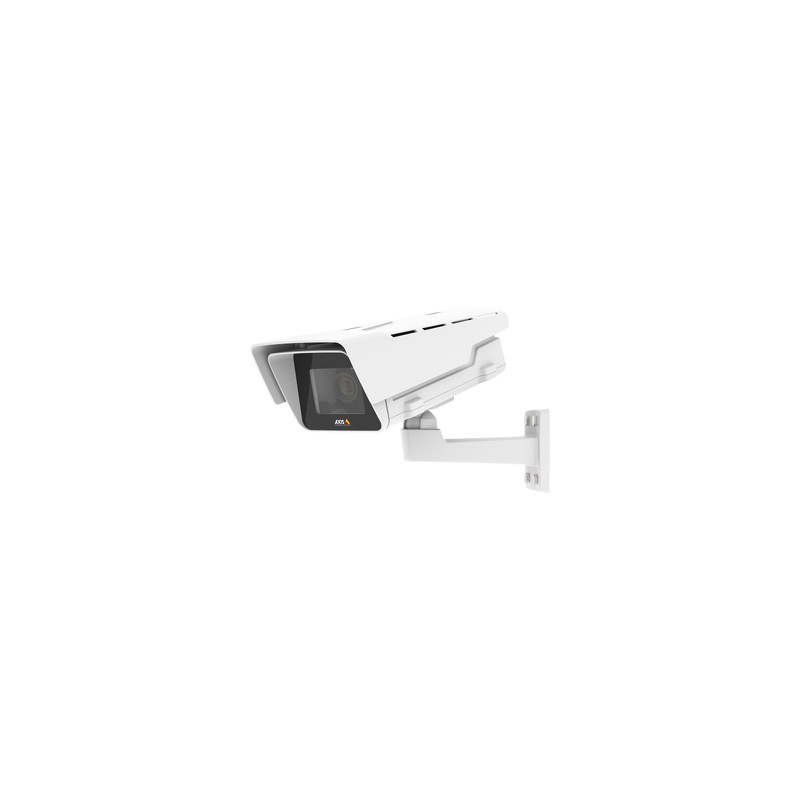

5 MP, IP66, IK10, WDR, 1/2.9" RGB CMOS, PoE, 2.2 kg
0763-001
Out of Stock
