Easier Than You Think

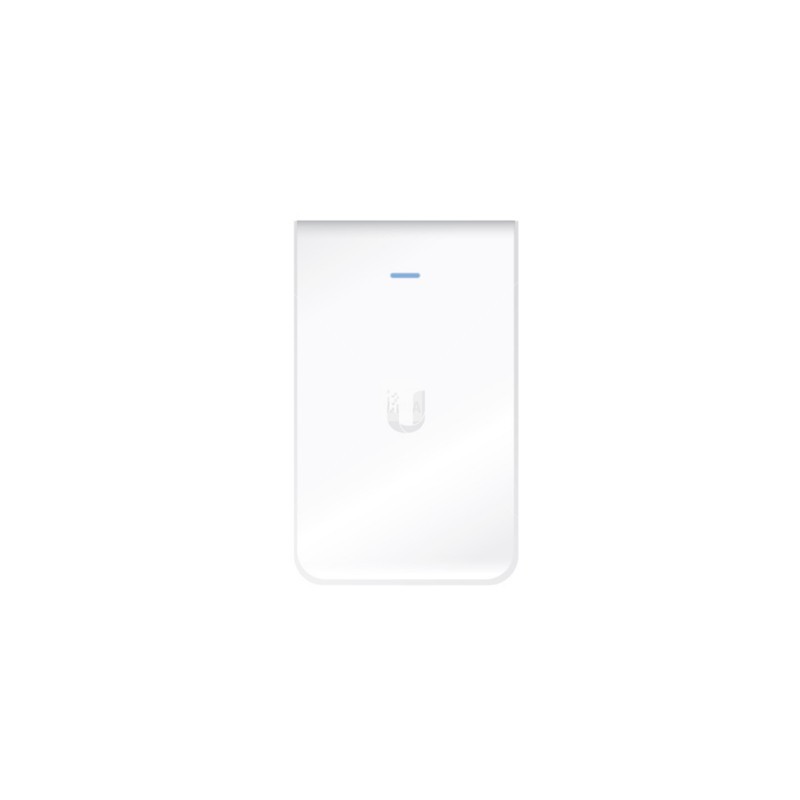

Ideal for new and retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports.
The Power of PoE
Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series.*
* Requires Cat5e or higher
Versatile Data and PoE Output
An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source.
Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.
Simple and Scalable Device Management
The UniFi® Controller provides a graphical user interface for easy
configuration and monitoring of the UniFi Switch and other UniFi devices.
Ideal for new and retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports.
The Power of PoE
Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series.*
* Requires Cat5e or higher
Versatile Data and PoE Output
An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source.
Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.
Simple and Scalable Device Management
The UniFi® Controller provides a graphical user interface for easy
configuration and monitoring of the UniFi Switch and other UniFi devices.
| Antenna gain level (max) | 2 dBi |
| Antenna type | Dual-Band, Single-Polarity |
| Antennas quantity | 1 |
| Certification | DFS, CE, FCC, IC |
| Colour of product | White |
| Data transfer rate (max) | 867 Mbit/s |
| DC-in jack | Y |
| Depth | 25.75 mm |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Firmware upgradeable | Y |
| Frequency band | 2.4 - 5 GHz |
| Height | 139.7 mm |
| Input current | 0.5 A |
| Input voltage | 48 V |
| Integrated antenna | Y |
| Internal | N |
| LED indicators | Y |
| Maximum indoor range | 100 m |
| Mounting kit | Y |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.3at |
| Number of users | 250 user(s) |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 50 °C |
| Placement | In-wall |
| Power consumption (max) | 19 W |
| Power consumption (typical) | 7 W |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rate limiting | Y |
| Reset button | Y |
| Security algorithms | AES,TKIP,WEP,WPA,WPA-Enterprise,WPA-PSK,WPA2 |
| Transmitting power | 20 dBmW |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 200 g |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Width | 86.7 mm |
| 2.4 GHz | Y |
| 5 GHz | Y |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Internal RJ-45 ports quantity | 1 |
| Wireless isolation | Y |
