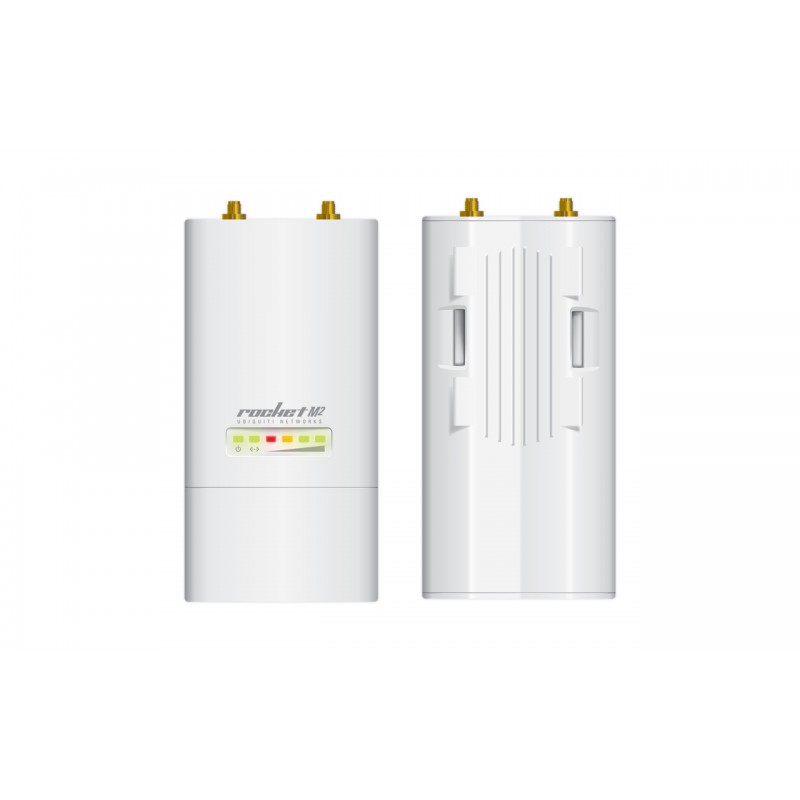

Ubiquiti Networks Rocket M2
  • Ubiquiti Networks Rocket M2
  • Ubiquiti Networks Rocket M2
Ubiquiti Rocket M2, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP AirMax base-station applications.

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Antenna connector typeRP-SMA
Antenna typeExternal
Antennas quantity2
Built-in processorAtheros MIPS 24KC 400MHz
CertificationFCC Part 15.247, IC RS210, CE \nRoHS
Colour of productWhite
Data transfer rate (max)150 Mbit/s
Depth30 mm
Detachable antenna(s)Y
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Flash memory8 MB
Frequency band2.412 - 2.462 GHz
Height170 mm
Input current1 A
Input voltage24 V
InternalN
Internal memory64 MB
LED indicatorsY
Maximum outdoor range50000 m
Networking standardsIEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-30 - 75 °C
Power consumption (typical)6.5 W
Power over Ethernet (PoE)Yes
Weight500 g
Wi-Fi data rate (max)150 Mbit/s
Width80 mm
2.4 GHzY
Output power description28dBm

ROCKETM2.pdf

Ubiquiti Networks Rocket M2 Data Sheet

Download (1.28M)
