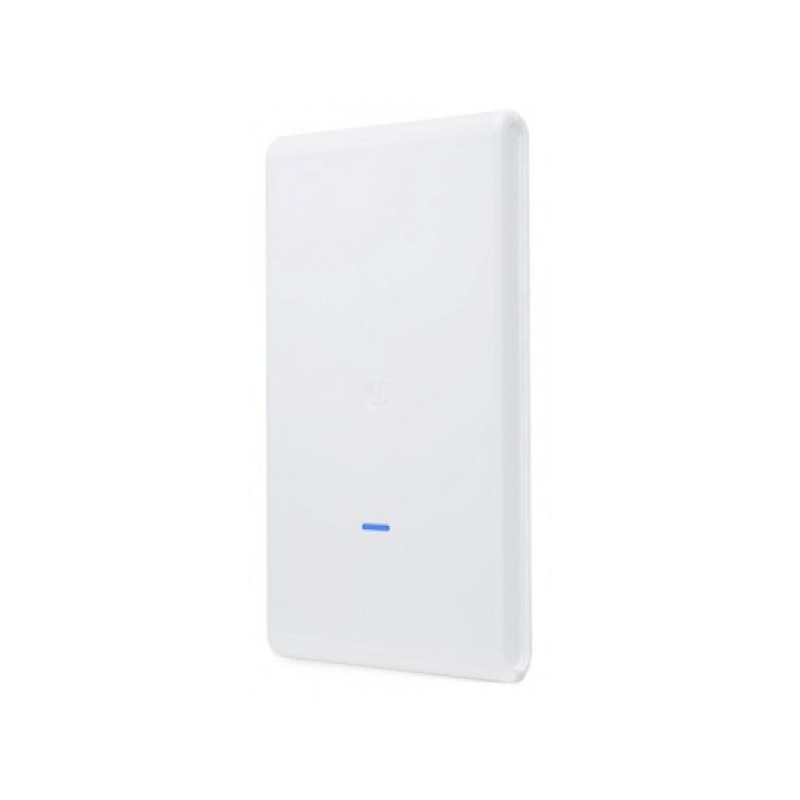

Ubiquiti Networks UAP-AC-M-PRO
  • Ubiquiti Networks UAP-AC-M-PRO
  • Ubiquiti Networks UAP-AC-M-PRO
Scalable Enterprise Wi-Fi Management



UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.



Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.



Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.



Features



Save money and save time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of using the UniFi Cloud Key with built-in software.



Powerful HardwareThe UniFi AC Mesh APs feature Wi-Fi 802.11AC with Plug & Play Mesh technology.



Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.



Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one and expand to thousands while maintaining a single unified management system.
CertificationCE, FCC, IC
Colour of productWhite
Data transfer rate (max)1300 Mbit/s
DC-in jackY
Depth181.2 mm
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5 GHz
Height60.2 mm
Input current0.5 A
Input voltage44 V
InternalN
LED indicatorsY
Mounting kitY
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-40 - 70 °C
PlacementPole,Wall
Power consumption (max)9 W
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Quick start guideY
Reset buttonY
Security algorithmsAES,TKIP,WEP,WPA,WPA-PSK,WPA2
VLAN supportY
Weight633 g
Wi-Fi data rate (max)1300 Mbit/s
Width343.2 mm
2.4 GHzY
5 GHzY
Wi-Fi Multimedia (WMM)/(WME)Y

UAP-AC-M-PRO.pdf

Ubiquiti Networks UAP-AC-M-PRO Data Sheet

Download (7.84M)
