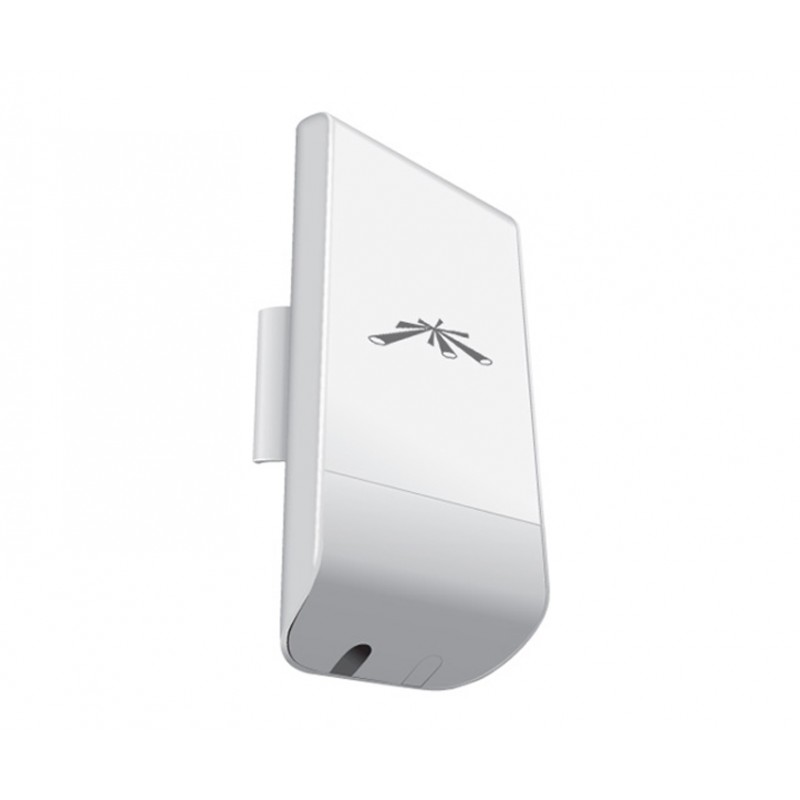

Ubiquiti Networks NanoStation M2
  • Ubiquiti Networks NanoStation M2
  • Ubiquiti Networks NanoStation M2
  • Ubiquiti Networks NanoStation M2
  • Ubiquiti Networks NanoStation M2
Compact CPE Design



The NanoStationM features the CPE design that expanded the global Wireless ISP industry.



Plug and Play Installation



The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting.



Versatile Application Use



The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.



Dual Ethernet Connectivity



With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.



Advanced Software Technology



Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.



Window/Wall Mounting Kit



Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
Antenna gain level (max)8 dBi
Built-in processorAtheros MIPS 24KC 400 MHz
CertificationRoHS
Colour of productWhite
Data transfer rate (max)150 Mbit/s
Depth31 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Flash memory8 MB
Frequency band2.412-2.462 GHz
Height163 mm
Housing materialPlastic
Input current0.5 A
Input voltage24 V
InternalN
Internal memory32 MB
LED indicatorsY
Maximum outdoor range10000 m
Networking standardsIEEE 802.3,IEEE 802.3u
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-30 - 75 °C
Power consumption (typical)5.5 W
Power over Ethernet (PoE)Yes
Weight180 g
Wi-Fi data rate (max)150 Mbit/s
Width80 mm
2.4 GHzY

LOCOM2.pdf

Ubiquiti Networks NanoStation M2 Data Sheet

Download (7.43M)
