Scalable Enterprise Wi-Fi Management

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.



Save money and save time

Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.

Powerful Hardware

The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.

Intuitive UniFi Controller Software

Configure and manage your APs with the easy-to-learn user interface.

Expandable

Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.

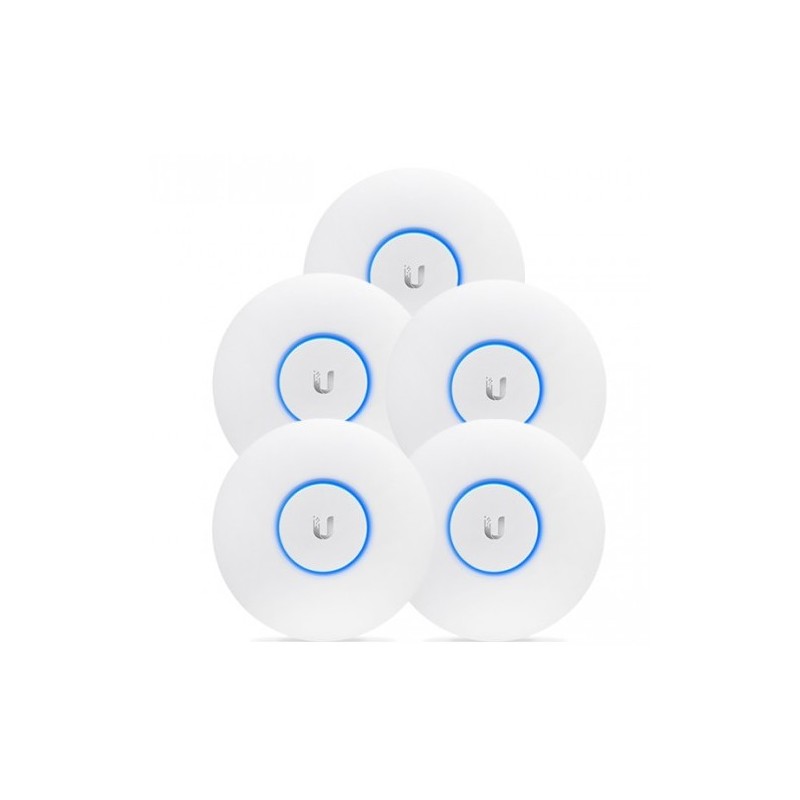

UAP-AC-LITE

Featuring an ultra-compact design, the UniFi AC Lite AP delivers a cost-effective combination of value and

performance in a reduced footprint: 25% smaller than the standard UniFi AP. The UniFi AC Lite AP provides simultaneous, dual-band, 2x2 MIMO technology and is available in single- and five‑packs.
Antenna gain level (max)3 dBi
Antennas quantity2
CertificationCE, FCC, IC
Colour of productWhite
Data transfer rate (max)1000 Mbit/s
Depth160 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Height31.4 mm
Input current0.5 A
Input voltage24 V
InternalN
Maximum indoor range122 m
Mounting kitY
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-10 - 70 °C
Power consumption (max)6.5 W
Power over Ethernet (PoE)Yes
Reset buttonY
Security algorithmsAES,TKIP,WEP,WPA,WPA-PSK,WPA2
Weight170 g
Wi-Fi data rate (max)867 Mbit/s
Width160 mm
2.4 GHzY

UAP-AC-LITE-5.pdf

Ubiquiti Networks UAP-AC-LITE-5 Data Sheet

Download (7.37M)
