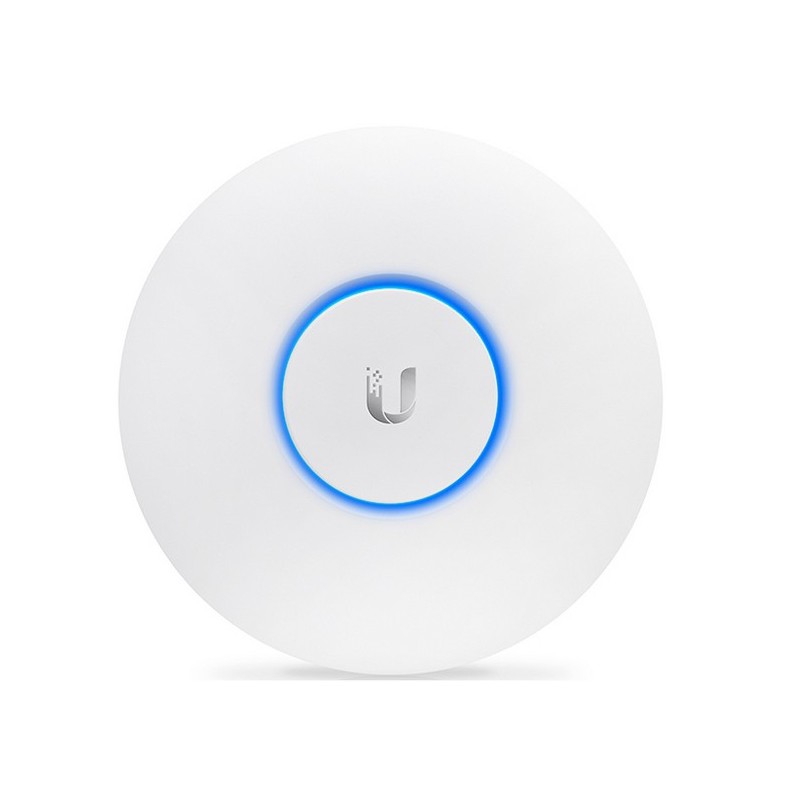

Ubiquiti Networks UAP-AC-LR
  • Ubiquiti Networks UAP-AC-LR
  • Ubiquiti Networks UAP-AC-LR
  • Ubiquiti Networks UAP-AC-LR
  • Ubiquiti Networks UAP-AC-LR
  • Ubiquiti Networks UAP-AC-LR
  • Ubiquiti Networks UAP-AC-LR
Scalable Enterprise Wi-Fi Management

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.



Save money and save time

Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.

Powerful Hardware

The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.

Intuitive UniFi Controller Software

Configure and manage your APs with the easy-to-learn user interface.

Expandable

Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.



UAP-AC-LR

Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients. It is available in single- and five‑packs.
Antenna gain level (max)3 dBi
Antennas quantity1
CertificationCE, FCC, IC
Colour of productWhite
Data transfer rate (max)1000 Mbit/s
Depth175.7 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Height43.2 mm
Input current0.5 A
Input voltage24 V
InternalN
Maximum indoor range183 m
Mounting kitY
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-10 - 70 °C
Power consumption (max)6.5 W
Reset buttonY
Security algorithmsAES,TKIP,WEP,WPA,WPA-PSK,WPA2
Weight240 g
Wi-Fi data rate (max)867 Mbit/s
Width175.7 mm
2.4 GHzY
5 GHzY

UAP-AC-LR.pdf

Ubiquiti Networks UAP-AC-LR Data Sheet

Download (7.37M)
